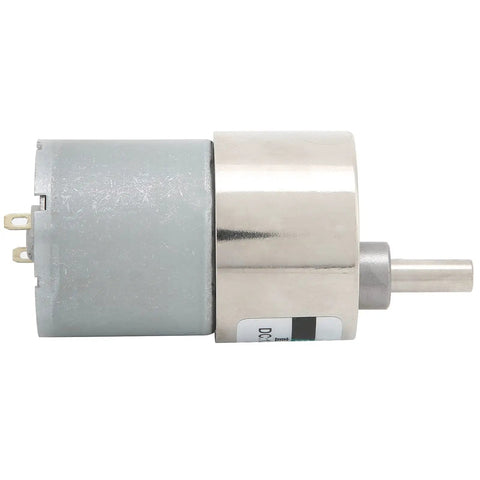

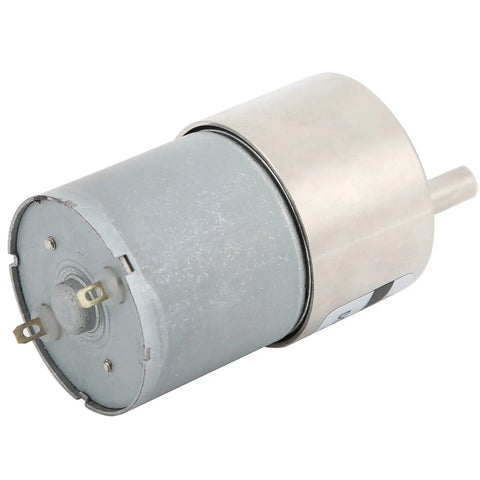

12V DC Gear Motor With Mounting Bracket And Speed Governor 100 RPM Low Speed Mean Torque Permanent Magnet Drive For Industrial Automation And Heavy Duty Equipment XD37GB3530
This compact drive combines a permanent magnet core with all-metal gears for durable performance in automation. It’s commonly used on CNC tools, robots, textile machines, and automated production lines.

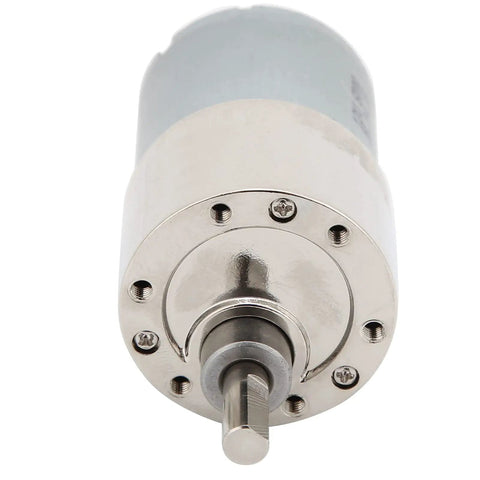

✅ Output Shaft Size: 5.5 x 15 mm / 0.2 x 0.6 in
✅ Model: XD-37GB3530
✅ Voltage: 12 V DC
✅ No-load speed: 100 rpm; No-load current: 0.15 A
✅ Load speed: 93 rpm; Load current: 0.58 A; Power: 10 W
✅ Insulation class: B (130°C); Operating temp: -10 to 40°C; Humidity ≤85%

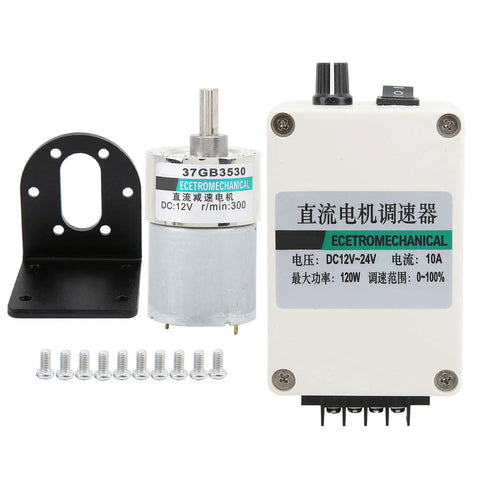

✅ CW/CCW rotation; Speed adjustment: 0-100% via governor (DC12-24V)
✅ Insulation resistance: ≤ 20 MΩ at DC500V; Withstand voltage: 1500V
💡 What is a 12V DC gear motor with mounting bracket and speed governor used for in industrial automation?
It’s a handy, compact drive for precise torque and motion control in automation tasks.
- CNC machines, robots, textiles and printing lines - 0-100% speed control via governor using DC12-24V - CW/CCW rotation with integrated mounting bracket - Durable permanent magnet drive and all-metal gears ✝️
