12V And 24V Laser Sensor Photoelectric Switch PNP NO NC M18 Four Wire Input 10 To 30VDC With Detection Range 8 To 50 cm One Millisecond Response High Sensitivity Workhorse Industrial Automation Gear
✔️ 4-wire PNP NO+NC, 0-500mm range, 1ms response, 30VDC (Single unit)

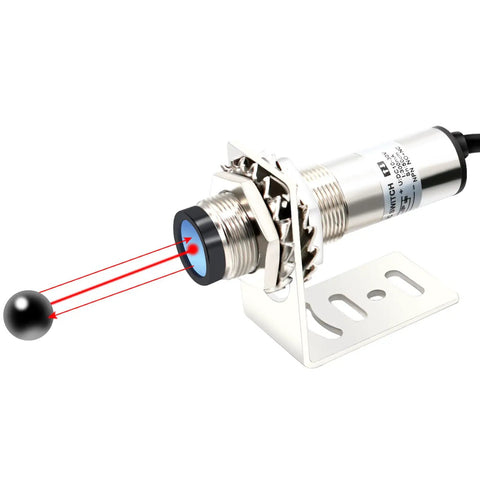

This laser photoelectric switch uses a precision laser beam to detect objects, positions, and movement. It's commonly used in robotic cells, packaging lines, and automated conveyors where fast and precise sensing matters.

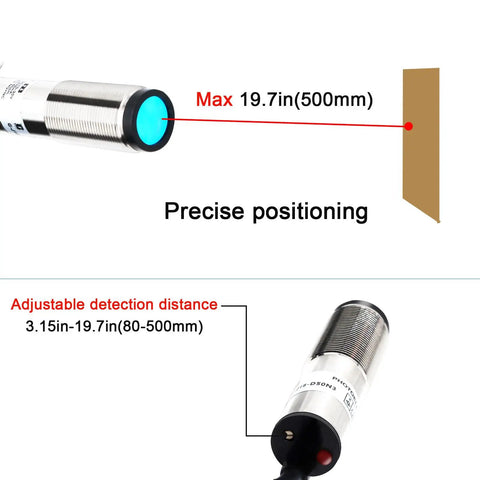

✅ Detection range 0-500 mm (0-19.7 in), adjustable

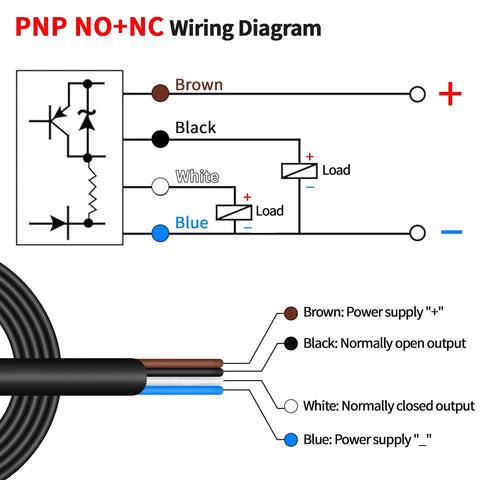

✅ 4-wire PNP NO+NC outputs, usable separately or together
✅ Operating voltage 10-30 V DC; supports 12/24 V systems
✅ No-load current <30 mA; max load current 200 mA at 30 V
✅ Short-circuit protection, reverse polarity protection
✅ 1 ms response time with high sensitivity laser sensing
💡 What is a laser photoelectric switch used for in automated systems?
In automation, a laser photoelectric switch helps detect presence, position, and motion to trigger conveyors, robots, and safety interlocks.
- Handy tool for securing precise object detection on production lines
- Provides fast, clean switching with PNP NO+NC outputs
- Works on 10-30 V DC with built-in protection features
- Improves reliability in tough industrial environments
