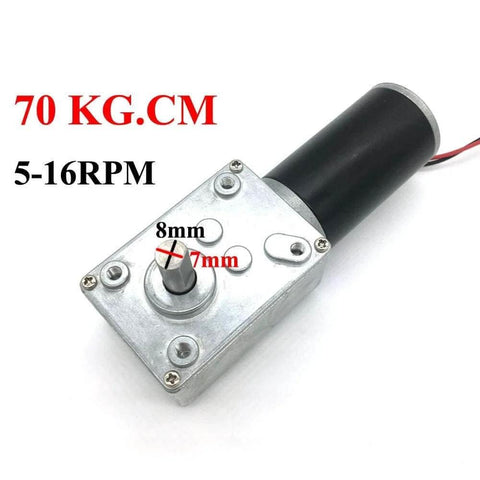

12V 16rpm DC Worm Gear Motor 70kg.cm High Torque Turbine Electric Gearbox Motor Self-Locking Reversed Mini Engine Geared Motor for DIY Robot Door Lock Curtain Machine (12V 16rpm)

12V DC Worm Gear Motor 16rpm, 70 kg.cm High Torque Self-Locking Geared Motor for DIY Robots, Door Locks, Curtains - 1pc Pack
✔️ 12V 16rpm Worm Gear Motor with Self-Locking Output, 1pc Pack

This compact 12V DC worm gear motor delivers high torque and self-locking behavior in a compact package, ideal for DIY robotics, door locks, curtains, safes, and automation projects. Perfect for a single-motor setup, it ships as a 1 piece pack.

✅ Rated voltage: 12V DC
✅ No-load speed: 16 rpm
✅ No-load current: 350 mA
✅ Rated speed: 12 rpm
✅ Rated torque: 70 kg.cm
✅ Rated current: 1.6 A
✅ Reducer ratio: 1:505

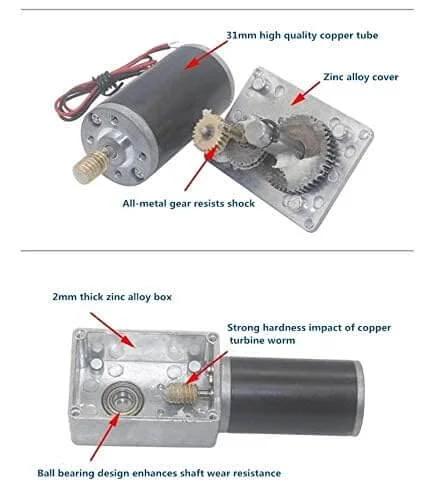

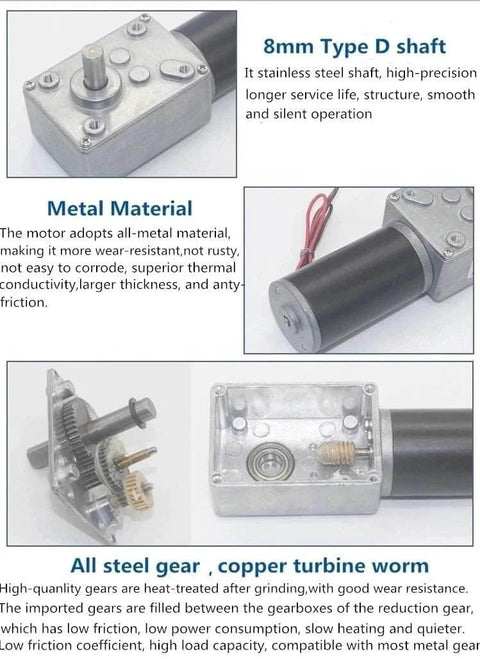

✅ Gear type: Micro-turbine worm gear; rotation can be changed by wiring

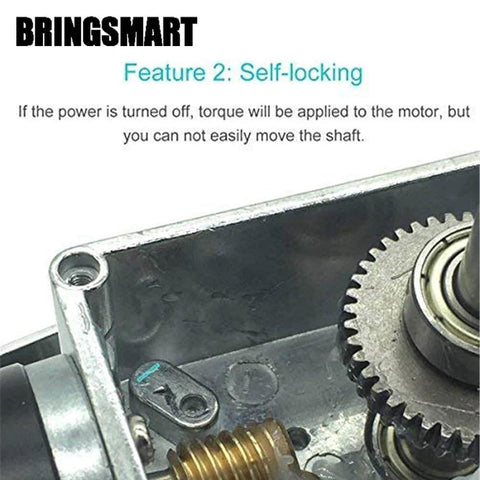

✅ Self-locking design: output shaft holds position when power is removed

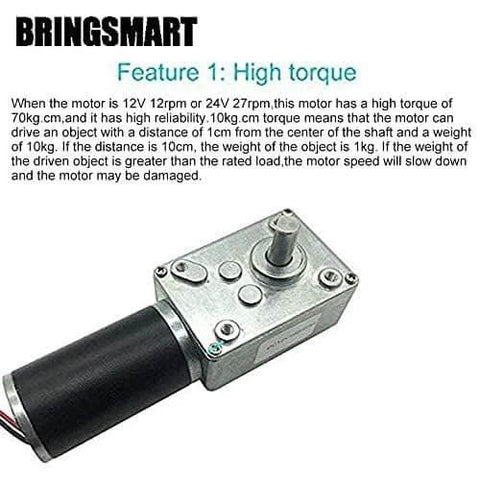

💡 What are the practical implications of the 70 kg.cm rated torque for a 1 cm lever arm in a DIY door lock or curtain automation project, and how does the self-locking worm gear respond when power is removed or when the load shifts?

Short answer: It provides solid holding power and controlled actuation within its rated torque, with the self-locking feature preventing drift when unpowered. Expect speed to slow as load approaches the limit, and consider heat and duty cycle when operating near stall.

• Under loads near the rated torque, speed will decrease as load increases; exceeding the rated torque can stall the motor or cause damage.
• Self-locking means the output shaft remains fixed with no electrical power, which is handy for locks and curtains that need to stay in place.

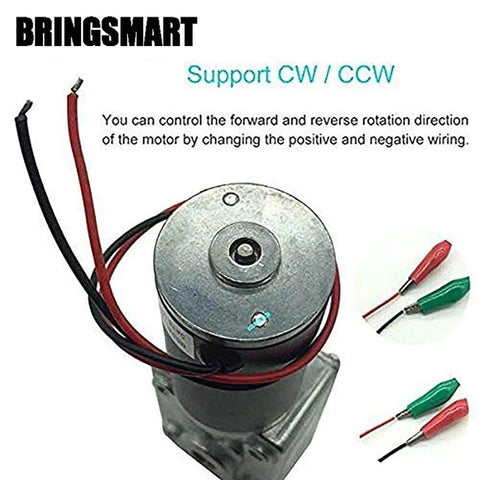

• Rotation direction can be altered by wiring configuration, simplifying installation in tight spaces.
• For longevity, avoid continuous near-stall operation; provide adequate cooling or use intermittent duty to prevent overheating.
