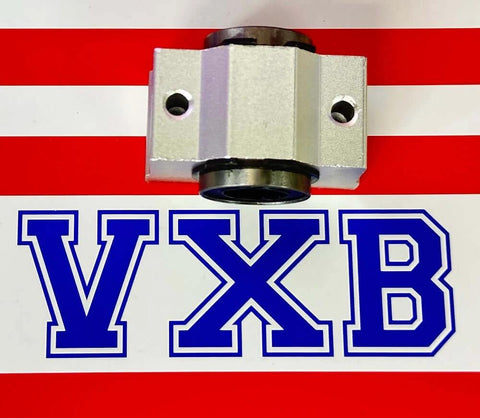

12mm Slide Unit Ball Bushing Block Linear Motion on a red and white background with VXB logo.

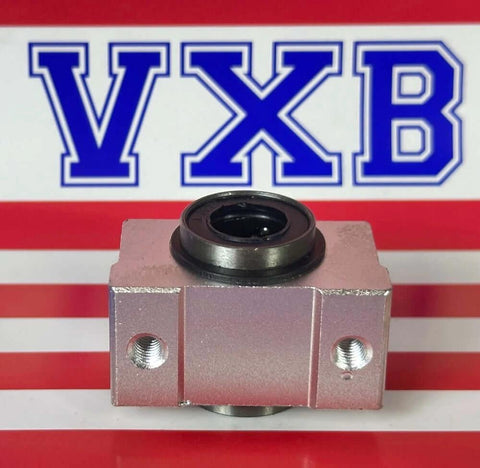

12mm Slide Unit Ball Bushing Block Linear Motion on a red and white striped background
12mm Slide Unit Ball Bushing Block Linear Motion on a red and white striped background
12mm Slide Unit Ball Bushing Block Linear Motion on a red and white background with VXB logo.
Technical drawing of 12mm Slide Unit Ball Bushing Block Linear Motion dimensions and specifications.

VXB

12mm Slide Unit Ball Bushing Block Linear Motion

$14.99 $27.99you save $13.00
SKU: 12MM-LINEAR-BLOCK
UPC: 00193019135419





Aluminum Pillow Block
Slide unit with pre-installed 12mm ID Bearing
To be used with 12mm Shafts

h D W H G A B E S1xe S2 C L Dynamic Load(N) Static Load (N)
15 21 42 28 24 8 30.5 5.75 M5x12 4.3 10.25 20.5 510 784
