12AN 90 Degree One Piece Full Flow Hose End Fitting Swivel For CPE Braided Hose Aluminum 6061 T6, 1 1/16-12 UNF, AN12, Heavy Duty 1500 PSI, -40F To 250F

12AN 90-Degree One-Piece Full-Flow Swivel Fitting for CPE Hose
✔️ 6061-T6 aluminum, 1 1/16-12 UNF, AN12, 1500 PSI, -40°F to 250°F

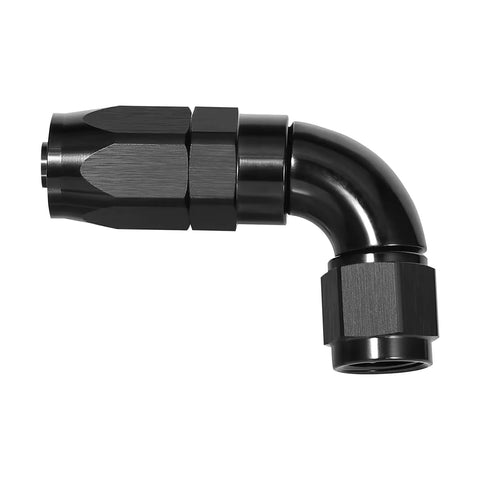

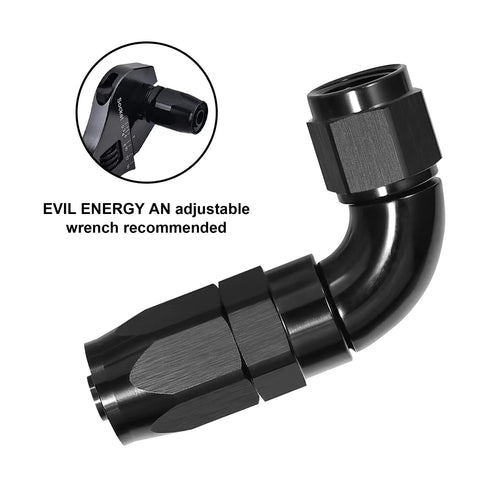

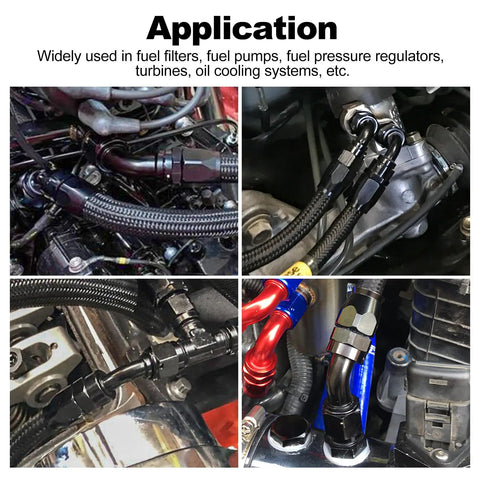

This 12AN 90-degree hose end is a one-piece full-flow swivel designed to connect AN12 fittings to CPE braided hose, delivering smooth flow and reliable sealing in high-pressure lines. It's suited for automotive, industrial, and hydraulic applications where tight routing and high PSI matter.

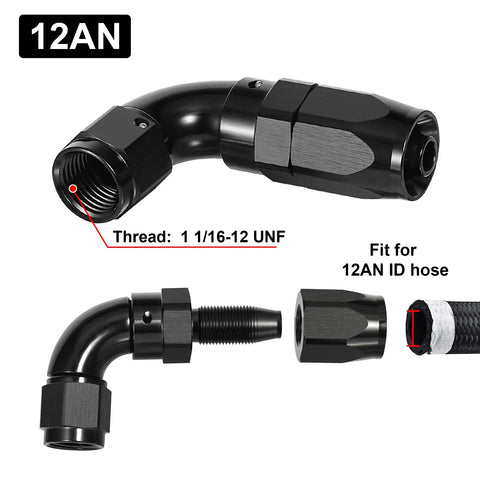

✅ Thread size: 1 1/16-12 UNF; AN12 seating at 37°

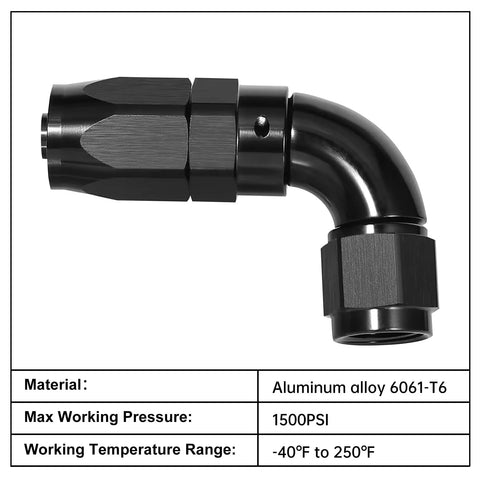

✅ Material: 6061-T6 aluminum; black finish
✅ Design: 90° swivel, full-flow, one-piece
✅ Max pressure: 1,500 PSI
✅ Temperature range: -40°F to 250°F
✅ Hose compatibility: stainless steel braided or nylon braided hoses

💡 What is a 12AN 90-degree hose fitting used for in high-pressure hydraulic and automotive lines?

Handy connector for tight routing and secure AN12 connections. Seating: 37° seat on AN side for reliable seal. Flow and durability: one-piece full-flow design minimizes restriction under pressure. Compatibility: works with stainless steel braided and nylon braided hoses up to 1500 PSI and wide temperature range. ✝️
