125mm 20N Mini Electric Linear Actuator 12V With 5 Inch Stroke 1.2 Inches Per Second Travel Speed Brackets Included For Cabinets Robotics Home Automation Window Opener
Regular price
$58.88
Sale price$70.00you save $11.12
Compact 125mm 12V Mini Linear Actuator for Cabinets
✔️ 125 mm stroke, 1 actuator with 2 bracket sets included

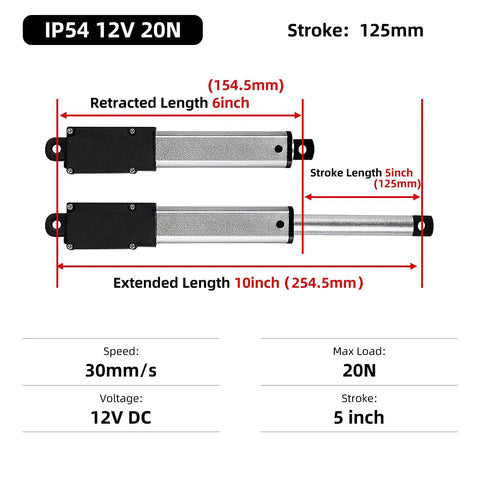

✅ Retracted length: 154.5 mm (6 in)
✅ Extended length: 254.5 mm (10 in)
✅ Travel speed: 30 mm/s (1.2 in/s)
✅ Max current: 2.5 A
✅ Max load: 20 N (4.5 lb)
✅ Housing and protection: Aluminum alloy, IP54, built-in limit switch
✔️ 125 mm stroke, 1 actuator with 2 bracket sets included
The 12V micro linear actuator is a compact lifting device designed for small automation projects. It’s ideal for cabinets, windows, DIY robotics, and home automation setups. This compact linear slide unit features an aluminum housing, built-in limit switch, IP54 protection, and includes two bracket kits for quick mounting.
✅ Stroke: 125 mm (5 in)✅ Retracted length: 154.5 mm (6 in)
✅ Extended length: 254.5 mm (10 in)
✅ Travel speed: 30 mm/s (1.2 in/s)
✅ Max current: 2.5 A
✅ Max load: 20 N (4.5 lb)
✅ Housing and protection: Aluminum alloy, IP54, built-in limit switch
💡 What is a 12V micro linear actuator used for in home automation and DIY projects?
These handy devices bring compact lifting to small automation tasks such as cabinet doors, window openers, and hobby robotics.
- Powerful enough for light lifting up to 20 N
- 125 mm stroke offers flexible travel in tight spaces
- IP54 rating protects against dust and water splashes
- Equipped with built-in limit switch for safe, repeatable operation
