120TAD20 P4 2 direction Thrust Angular Contact Bearing 120x180x72

120TAD20 P4 Nachi Double-direction Thrust Load Angular Contact Ball Bearing, inner diameter is 120mm, outer diameter is 180mm and width is 72mm, bearing is ABEC-7 quality and made in Japan.

• Item: 120TAD20 P4 Nachi Ball Bearing
• Type: Nachi Thrust Load Angular Contact Ball Bearing
• Quality: ABEC-7
• Dimensions: 120mm x 180mm x 72mm/Metric
• ID (inner diameter)/Bore: 120mm
• OD (outer diameter): 180mm
• Width/Height/thickness: 72mm
• Quantity: One Bearing
• Dynamic load rating Cr: 84,000 N
• Static load rating Cor: 256,000 N
• Limiting Speed:
  • Grease Lubrication: 2,300 RPM
  • Oil Lubrication: 3,100 RPM
• Made in Japan

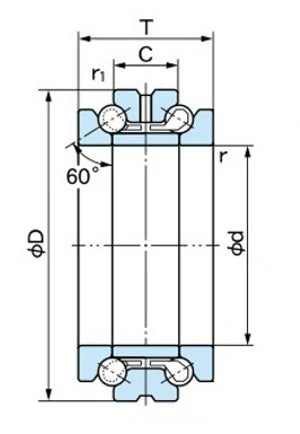

  Dimensions (mm)
  d	D	T	C	r(min)	r1(min)
  120	180	72	36	2	1
