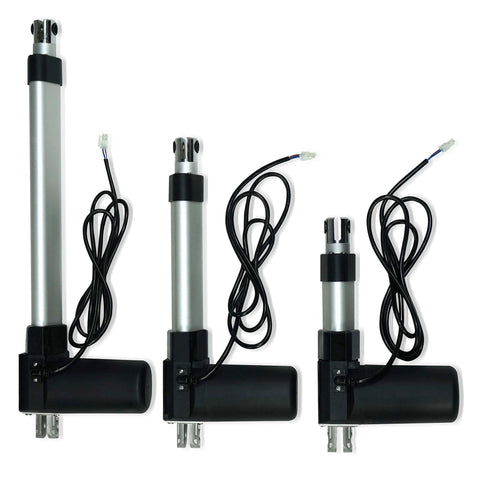

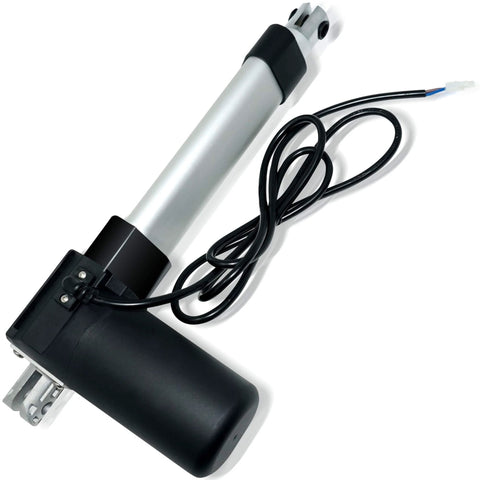

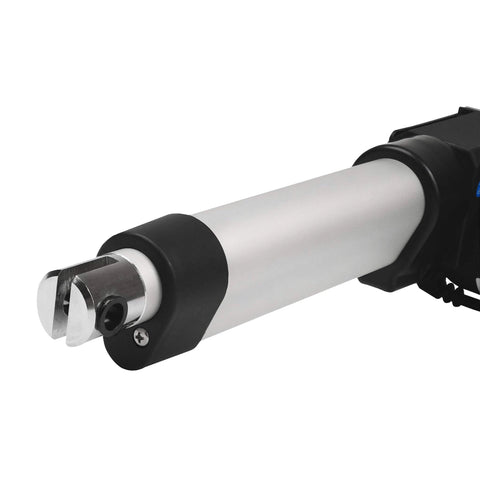

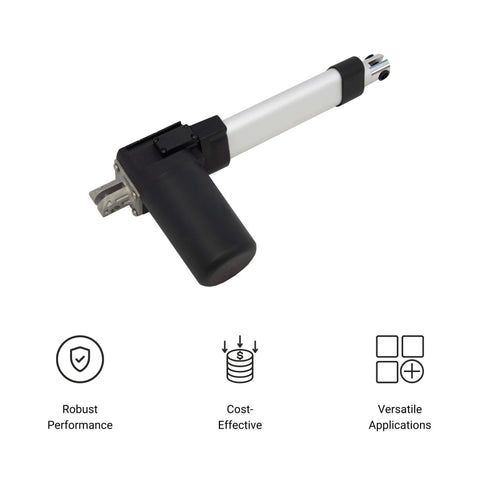

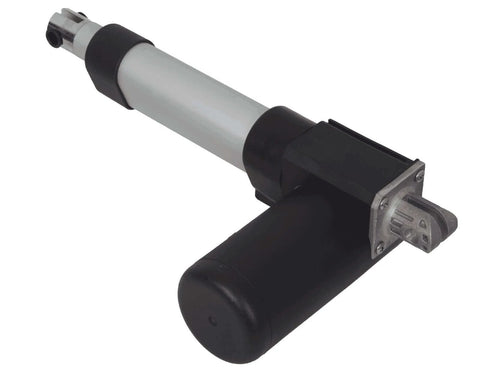

12 Inch Stroke Electric Linear Actuator, 400 lbs Force, IP66 Water Resistance - High Load Linear Actuator for Automation, Manufacturing, Automotive

12-Inch Stroke Electric Linear Actuator PA-04 - 400 lb Force, IP66 Water Resistant, Heavy-Duty Automation Actuator (Pack Size: 1)
✔️ Pack Size: 1 unit

This 12-Inch Stroke Electric Linear Actuator is built for heavy automation tasks across manufacturing, automotive, and home automation projects. Its IP66 rating protects against dust and water exposure, making outdoor and damp-environment installations reliable. The PA-04 operates on 12 VDC, provides a stroke range from 1" to 40" and delivers up to 400 lbs of force, giving you robust, predictable actuation for precise positioning and control.

✅ 12 VDC operation

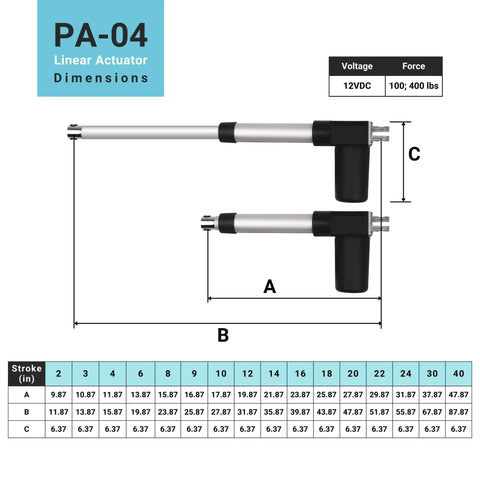

✅ Stroke range from 1" to 40"
✅ Force rating up to 400 lbs
✅ IP66 ingress protection for dust and water resistance
✅ Standard 2-Pin Molex Mini-Fit Jr connector for easy wiring
✅ ISO 9001:2015 certified by Progressive Automations

💡 What installation and integration considerations should I plan for when deploying the PA-04 12 Inch Stroke Actuator in outdoor automation setups that use 12 VDC control and require IP66 protection?

Short answer: Prioritize secure mounting, correct load alignment, and compatible control wiring, then verify end-of-travel sensing and environmental protection.

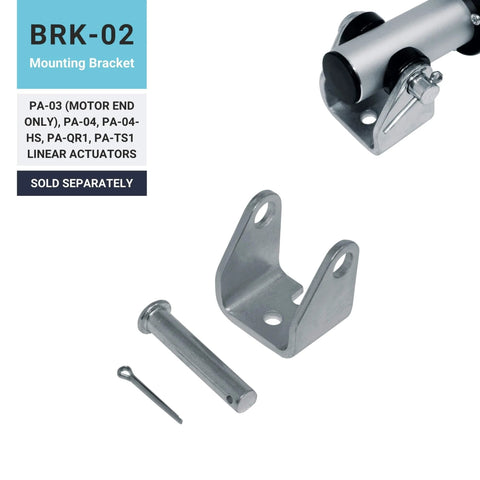

• Use rigid mounting brackets that support the actuator's stroke and orientation to minimize side loads and torque on the shaft.
• Ensure load paths remain straight and aligned with the actuator to prevent binding or premature wear; add guides if needed.
• Choose a controller and end-of-travel sensing method compatible with 12 VDC operation and the PA-04’s connector; employ the Molex Mini-Fit Jr wiring for power.
• Consider duty cycle, heat dissipation, and protective enclosures to maximize longevity in outdoor use, even with IP66 protection.
