12 Inch Mini Linear Rail Stage Actuator With 300mm Travel For DIY CNC Router X Y Z Motion System Includes NEMA11 Stepper Motor And Square Slide Table High Precision 24V DC 0.5 Amps 0 To 10 Millimeters Per Second
Regular price
$125.87
Sale price$229.00you save $103.13

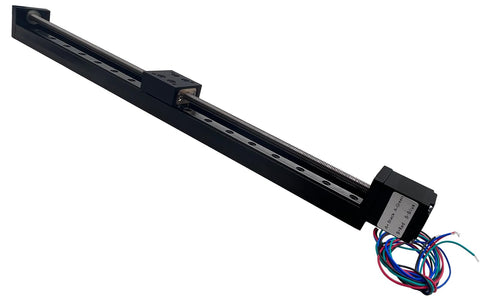

Compact 12-Inch Linear Rail Actuator 300mm Travel
✔️ Single unit, 24VDC, 0.5A, 300mm stroke, 0-10mm/s, NEMA11
✅ Speed: 0-10 mm/s at 24V DC, 0.5A max
✅ Load capacity: horizontal 2.5 kg, vertical 1 kg
✅ Includes: 1 Linear Stage Actuator and 1 User Manual
✔️ Single unit, 24VDC, 0.5A, 300mm stroke, 0-10mm/s, NEMA11
This compact mini linear rail stage is built for precise, smooth motion in DIY CNC routers, laser engravers, inspection benches, and lab setups. It comes with a square slide table and a 24V DC drive, ready for integration into small motion systems.
✅ Stroke: 300mm (12"), travel along axis✅ Speed: 0-10 mm/s at 24V DC, 0.5A max
✅ Load capacity: horizontal 2.5 kg, vertical 1 kg
✅ Includes: 1 Linear Stage Actuator and 1 User Manual
💡 What is a linear rail stage used for in hobbyist projects? A handy, precise motion tool for small CNC rigs, alignment work, and testing. - precise positioning for CNC routers and laser cutters - smooth, repeatable motion with low friction - easy hookup with 24V drivers and small stepper motors - ideal for alignment, inspection, and measurement tasks
