110V Automatic Timed Water Tank Drain Valve Two Way Direct Acting With Ten Inch Braided Steel Hose One Quarter Inch NPT Threads And Elbow Fitting US Plug For Air Compressor

110V Timed Drain Valve Kit for Air Compressors
✔️ Two-way direct-acting valve with 1/2 in ports and 10in hose

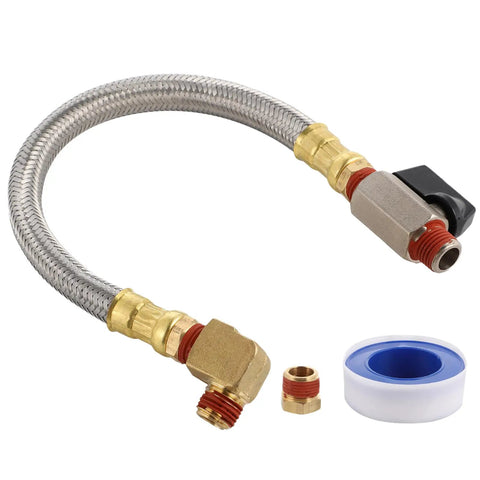

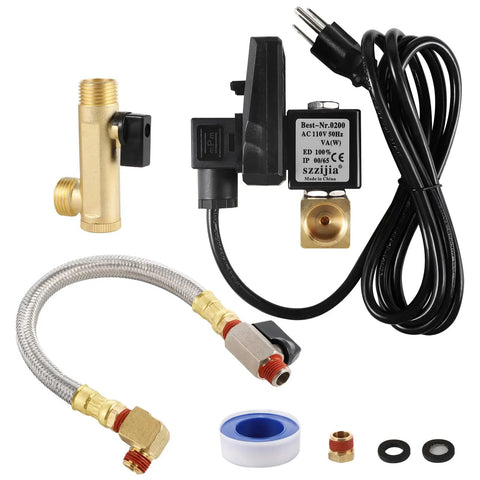

This 110V automatic timed drain valve kit is designed to vent condensate from air tanks and compressors. It’s a handy addition to workshops and mobile setups, keeping condensate out of lines and protecting tools. Package includes: 1 valve, 1 ten-inch hose, 1/4 in NPT to 3/8 in NPT brass adapter, and thread seal tape.

✅ Voltage: AC 110-120V, 50/60 Hz, 1/2 in inlet/outlet port (12.7 mm)
✅ Thread: 1/4 in NPT tapered; includes 1/4 in NPT to 3/8 in NPT brass adapter
✅ Flow orifice diameter: 5 mm (0.20 in)
✅ Max working pressure: 1.6 MPa (232 psi); burst pressure 33 MPa (475 psi)
✅ Max temperature: 200°F (93°C)
✅ Hose length: 340 mm (13.39 in) total; 254 mm (10.00 in) without joints
✅ Power: 110V AC, 1.8 m cord; IP65 housing

💡 What is a 110V air storage tank drain valve used for?

It automatically drains condensate from air storage tanks and keeps the system running clean and efficient.

- It helps prevent water contamination in compressed air lines
- It extends component life by minimizing moisture-related wear
- It simplifies maintenance with adjustable off/on timings
- It supports easy installation with standard port sizes and adapters
