Nachi

110TAD20 P4 2 direction Thrust Angular Contact Bearing 110x170x72

$2,312.99
SKU: Kit13595
UPC: 00193019096789
Item: 110TAD20 P4 Nachi Ball Bearing
Type: Nachi Thrust Load Angular Contact Ball Bearing
Quality: ABEC-7
Dimensions: 110mm x 170mm x 72mm/Metric
ID (inner diameter)/Bore: 110mm
110TAD20 P4 Nachi Double-direction
Thrust Load Angular Contact Ball Bearing
110mm x 170mm x 72mm
Made in Japan


110TAD20 P4 Nachi Double-direction Thrust Load Angular Contact Ball Bearing, inner diameter is 110mm, outer diameter is 170mm and width is 72mm, bearing is ABEC-7 quality and made in Japan.

  • Item: 110TAD20 P4 Nachi Ball Bearing
  • Type: Nachi Thrust Load Angular Contact Ball Bearing
  • Quality: ABEC-7
  • Dimensions: 110mm x 170mm x 72mm/Metric
  • ID (inner diameter)/Bore: 110mm
  • OD (outer diameter): 170mm
  • Width/Height/thickness: 72mm
  • Size: 110 x 170 x 72 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 81,500 N
  • Static load rating Cor: 236,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,500 RPM
    • Oil Lubrication: 3,300 RPM
  • Made in Japan

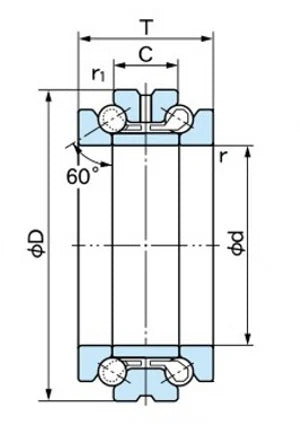

    Dimensions (mm)
    d D T C r(min) r1(min)
    110 170 72 36 2 1
