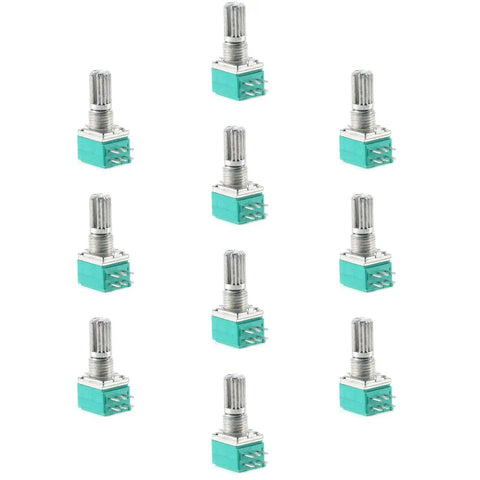

10K Dual Potentiometer For Audio Amp And DIY Speaker System, 15mm 6 Pin, RK097G Compatible, B10K Range, 300 Degree Rotation With Center Click, Smooth High Torque Volume Control
✔️ 10K dual pot, 15mm, 6-pin, RK097G compatible, 300° rotation
This compact dual 10K potentiometer is designed for audio amps and DIY speaker builds. Its 15mm diameter and 6-pin footprint make it a great choice for tight enclosures where smooth, precise volume control is needed. Ideal for stereo channels thanks to its dual wheel design and center click.
✅ Total rotational angle: 300°±10°
✅ Rotational torque: 1~20mN.m (10~200 gf·cm)
✅ Rotation stopper strength: 0.4 N.m (4 kgf·cm)
✅ Click position: center; Click torque: 2-20 mN.m (20-200 gf·cm)
✅ Push pull strength: push 60N (6kgf); pull 40N (4kgf)
✅ Total resistance: 10KΩ ~ 500KΩ
✅ Total resistance tolerance: ±20%
✅ Rated power: curve B: 0.05W; other curve B: 0.025W
✅ Max operating voltage: curveB = 50V AC; other curve B = 25V AC
✅ Resistance taper: A,B,C
✅ Residual resistance: R≥250KΩ 0.1% max. of total resistance; 250KΩ > R > 10KΩ, 202 max.
✅ 10KΩ≥R, 10Ω max.
✅ Slide noise: less than 100mV
✅ Insulation resistance: more than 100MΩ at DC 250V
✅ Gang error: -40~0dB dB≤3dB
✅ Rotational life: 10,000 cycles
💡 What is a dual potentiometer used for in audio equipment?
A handy tool for stereo volume control and balance in amps and DIY speaker setups.
- Dual channel control with a single knob
- Compact 15mm footprint fits tight enclosures
- Center click provides repeatable settings
- RK097G compatibility covers common boards
