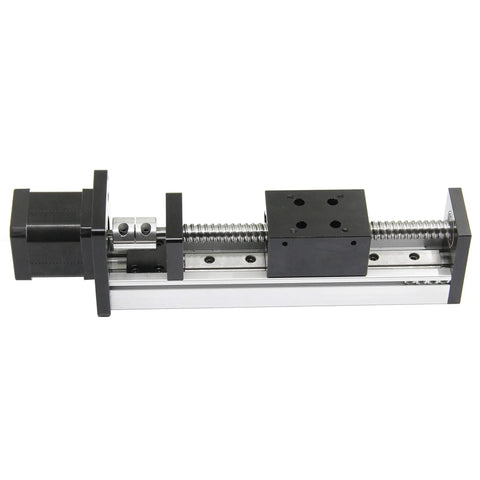

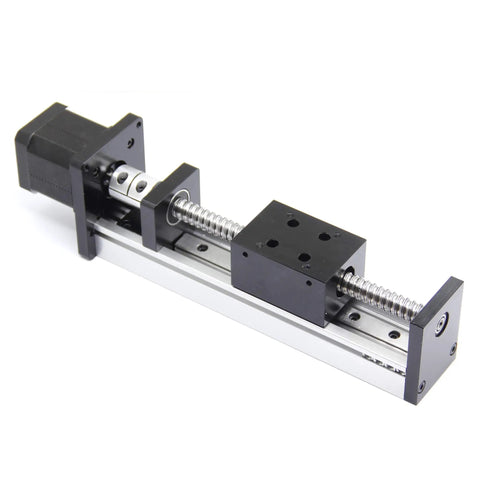

100mm Travel Linear Stage Actuator With SFU1204 Ball Screw And Square Rails, NEMA17 Stepper Motor, DIY CNC Router X Y Z Axis Kit, High Precision, 30kg Horizontal Load, 15kg Vertical Load, Smooth Motion
✔️ Travel 100mm, lead 4mm, 0-100mm/s, repeat ±0.03mm, 1pc
This compact 100mm travel linear stage pairs SFU1204 ballscrew with square rails and a NEMA17 motor for precise, smooth motion in DIY CNC routers, engraving machines, and automated rigs.
✅ Horizontal load capacity: 30kg
✅ Vertical load capacity: 15kg
✅ Repeat positioning accuracy: ±0.03mm
✅ Effective travel length: 100mm
✅ SFU1204 ballscrew (12mm dia, 4mm pitch)
✅ NEMA17 stepper motor: torque 1.2 N m, current 1.5A, flange 42mm
✅ Travel speed: 0-100mm/s
✅ Weight: 1302g

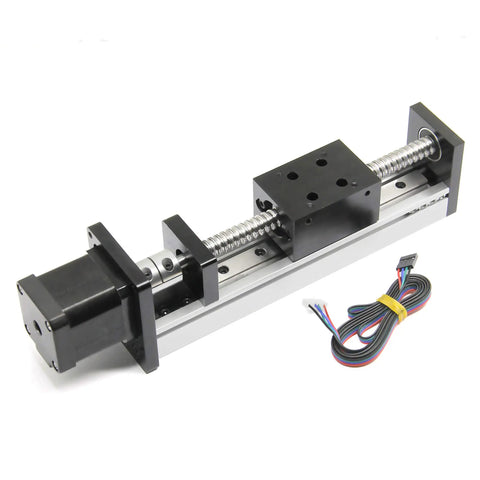

✅ Package: 1 linear stage actuator with NEMA17 motor and 1x motor cable
💡 What is a 100mm travel linear stage actuator with SFU1204 screw used for in DIY CNC router projects? It's a handy option for precise motion control along an axis in compact setups. - precise X-Y-Z axis alignment for CNC work - easy integration with NEMA17 motors and SFU1204 screw - helps achieve repeatable cuts and engravings - suits small to medium DIY CNC routers and laser rigs
✝️
