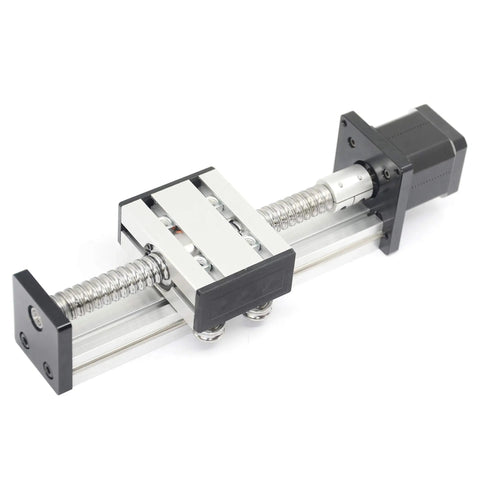

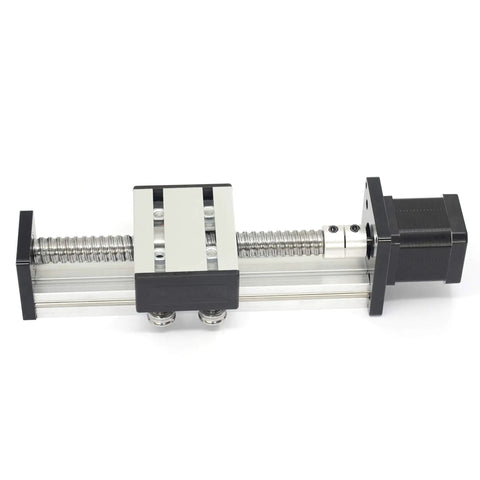

100mm Travel Linear Rail Guide SFU1605 Ballscrew With NEMA17 Stepper Motor For DIY CNC Router Parts X Y Z Linear Stage Actuator High Precision Speed 0 To 100 mm Per Second Repeatability 0.03 mm 30 Kg Horizontal 15 Kg Vertical 4 M6 Nuts
✔️ Single unit, 100 mm travel, 4 M6 nuts included
This compact 100 mm travel linear stage merges SFU1605 (16 mm diameter, 5 mm lead) with a NEMA17 motor to deliver precise, repeatable motion for DIY CNC routers, milling machines, 3D printers, and automated workstations. It’s ideal for X, Y, or Z axis motion in compact setups.
✅ SFU1605 ballscrew (16 mm dia, 5 mm lead) for precise travel
✅ Horizontal load up to 30 kg; vertical load up to 15 kg
✅ Repeatability ±0.03 mm for accurate positioning
✅ Travel 100 mm with total length 260 mm
✅ NEMA17 motor included: 1.5 A, 1.2 N·m holding torque, 42 mm flange

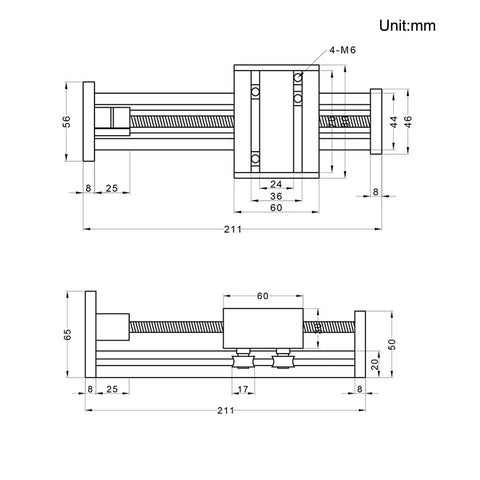

✅ 4 M6 mounting nuts on moving block for secure workpiece mounting
💡 What is a SFU1605 linear rail and ballscrew stage typically used for in DIY CNC setups?
It's handy for precise, repeatable motion in compact CNC builds.
- precise X/Y axis movement for routing, milling, engraving- compatible with standard NEMA17 stepper motors and drivers
- improves repeatability and load handling in small gantry systems
- easy mounting with four M6 nuts for fixtures
