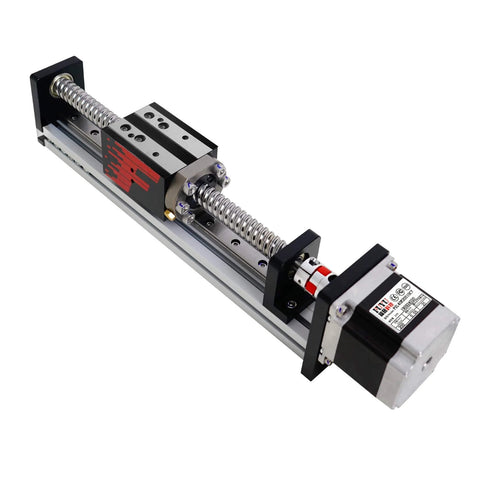

100mm Stroke Work Size Linear Guide Table Ball Screw Motion CNC Linear Guide Stage Actuator Motorized Nema 23 Stepper Motor

100mm Stroke Linear Guide Table with Ball Screw Motion for CNC - 1 Unit Pack, NEMA 23 Stepper Motor Included

✔️ Compact, rigid aluminum linear guide module with a G1610 ballscrew designed for precise CNC motion, reliable automation tasks, and easy integration into small workstations. Pack size: 1 unit.

This 100 mm stroke linear guide table combines a fully aluminum rail and a G1610 ballscrew to deliver rigid, rust-resistant motion for precise CNC work, automation lines, dispensing systems, visual inspection, palletizing, and other automated processes. Pack size: 1 unit.

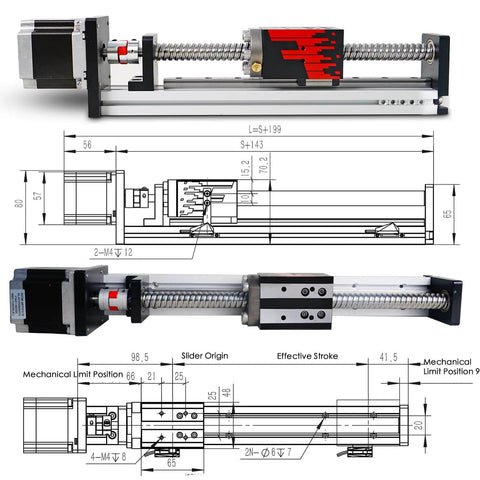

✅ Stroke length: 100 mm

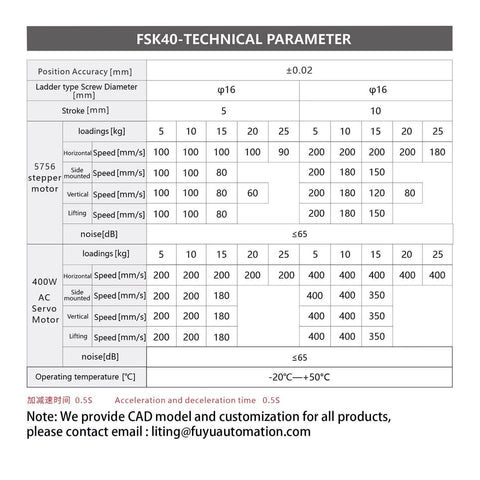

✅ Accuracy: ±0.02 mm
✅ Horizontal loading capacity: 25 kg
✅ Vertical loading capacity: 20 kg
✅ Motor: Special NEMA 23 (5756) stepper motor; max speed 1200 rpm
✅ Max speed (no load): 255 mm/s
✅ Max horizontal speed (max loading): 180 mm/s
✅ Max vertical speed (max loading): 80 mm/s
✅ Optional servo motor: 400 W available for higher speeds

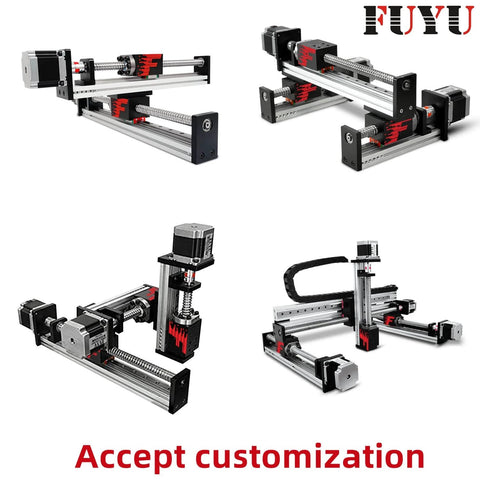

✅ Stroke options: 50 mm to 1000 mm
✅ Applications: precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, locking screws, palletizing

💡 How does the 100 mm stroke linear guide table with a G1610 ballscrew maintain ±0.02 mm accuracy under varying loads, and what motor drive combination is recommended to ensure reliable, high-speed 24/7 operation in a compact CNC setup?

Short answer: Matching the drive to the mechanicals and managing heat and backlash are key to sustained precision.

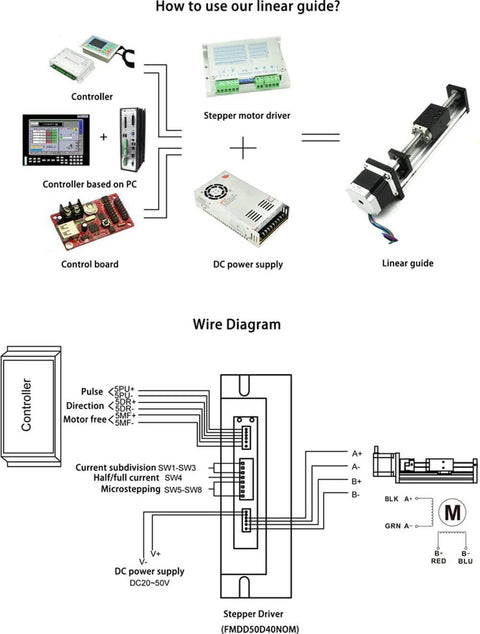

- Use a closed-loop servo or high-torque NEMA 23 with a controller that supports precise micro-stepping and synchronized motion.

- Align lead screw pitch and nut preload to your load and speed targets to minimize backlash and runout.

- Provide adequate cooling and stable mounting to prevent thermal drift and vibration during continuous use.

- For higher throughput and smoother motion, consider the 400 W servo option with a compatible drive and proper cooling.
