100mm Stroke Linear Slide Table For CNC Router And Optical Measurement, 28 Stepper Motor, Single Rail Linear Motion Stage, 1.8 Degree Step Angle, Beefy Alloy Construction For Ultra Solid Precision And Vibration Dampening
✔️ 100mm stroke, single rail, 1.8 degree step angle, alloy body, 6 N cm

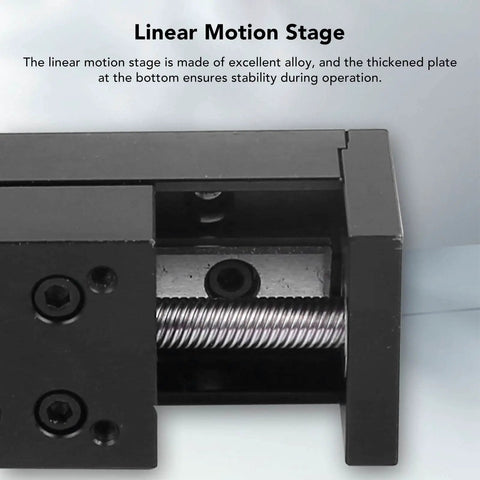

This 100mm stroke linear slide table is built on a sturdy alloy chassis with a thickened base for stable, low-drift motion. It's designed for CNC routers, optical measurement rigs, and precision detection equipment, and is ideal for X, Y, and Z axis positioning where smooth, wobble-free movement matters.
✅ Stroke: 100 mm

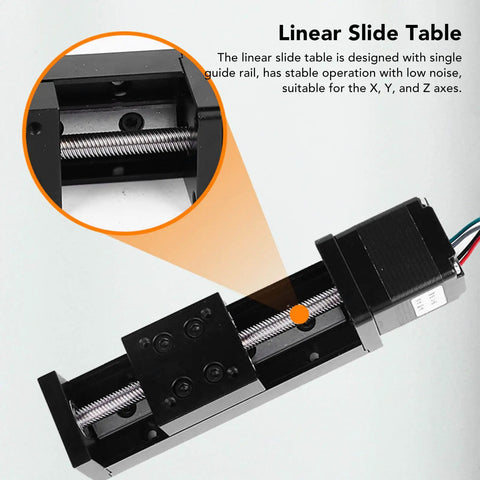

✅ Single rail design delivers stable motion
✅ Speed range: 0-120 mm/s

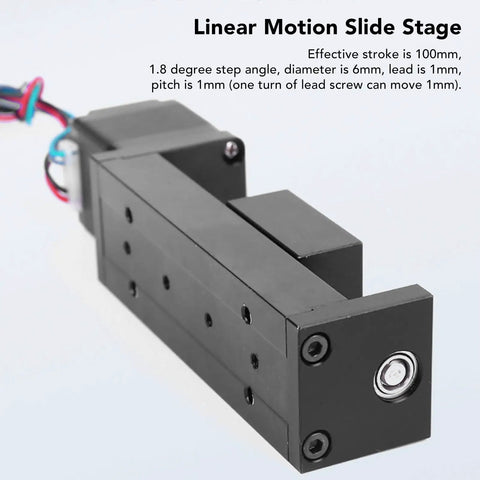

✅ 6 mm diameter screw with 1 mm pitch
✅ 1.8 degree step angle for micron-level positioning
✅ Horizontal load up to 5 kg; vertical to 1 kg
✅ 0.6 A current rating
✅ 6 N cm holding torsion for stable positioning
✅ Premium alloy construction with vibration damping
✅ 5.5 Ω resistance and 3.2 mH inductance
💡 What is a 100mm stroke linear slide table used for in CNC routers and optical measurement? In everyday use, it's a precise motion stage that enables accurate positioning and repeatable moves in machine tools and measurement rigs. - It provides smooth movement along the axis - It supports X, Y, and Z axis alignment for precise positioning - It features a 100 mm stroke, 1.8 degree step angle, and sturdy alloy body for stability
✝️
