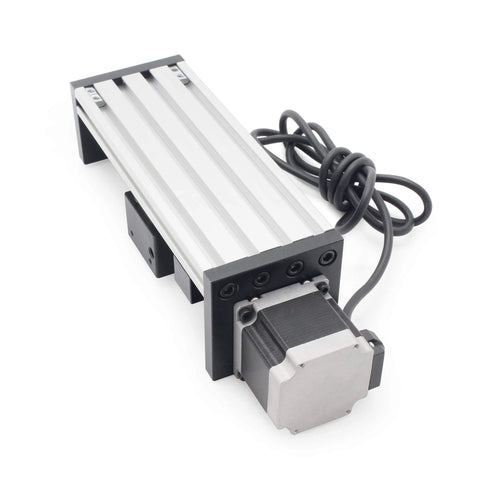

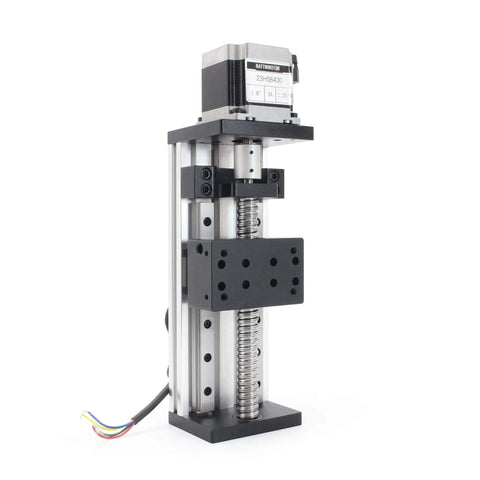

100mm / 3.94" Linear Motion Guide Actuator Double Linear Rail Slide 1605 Ballscrew Motorized XY XYZ Linear Stage Table Nema23 Stepper Motor for DIY CNC Router Engraver Machine

100mm Travel Linear Motion Guide Actuator - 1605 Ballscrew, Double Rail XY/XYZ Stage with NEMA23 - Pack size: 1 set
✔️

This 100 mm travel motorized linear stage is engineered for precise X/Y positioning in DIY CNC routers, engravers, laser cutters, and automation projects. It combines a sturdy double line rail slide with a 1605 ball screw and a NEMA23 stepper to deliver smooth, repeatable motion in compact form. Pack size: 1 set.

✅ Travel length: 100 mm / 3.94 in

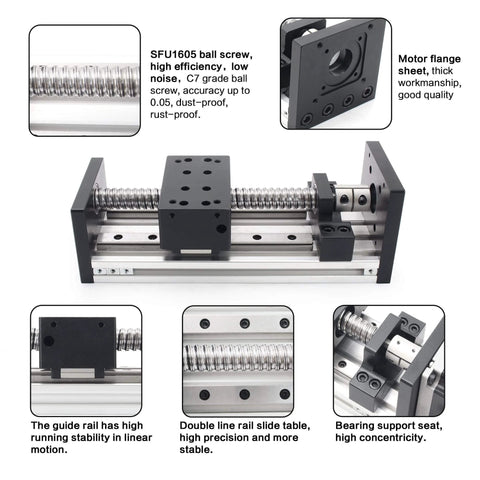

✅ Ball screw: 1605; pitch 5 mm; precision grade C7; sliding nut with 0.003 mm accuracy
✅ Motor: Nema23; holding torque 1.2 N·m; length 56 mm; flange 57 mm; current 3 A; winding Red(A+), Green(A-), Yellow(B+), Blue(B-)
✅ Load rating: Horizontal 60 kg (132.28 lb); Vertical 30 kg (66.14 lb)
✅ Rail system: Double line rail sliding table; 6030 aluminum slider with oxidized finish; bearing seat included; sidenut design allows limit switch mounting at any position
✅ Applications: CNC machines, laser engraving, PCB milling upgrades, spraying equipment, medical devices, battery test rigs, and other industrial automation tasks

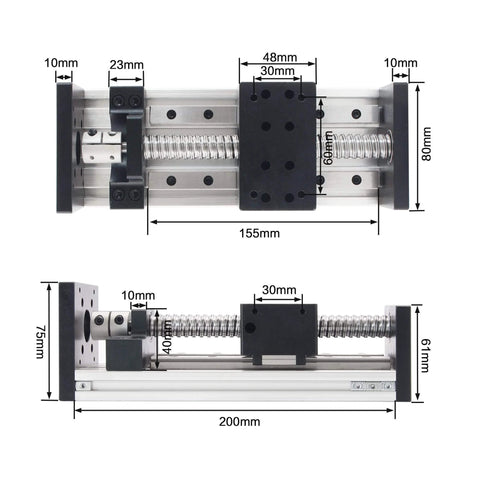

Travel: 100 mm / 3.94 in
Screw pitch: 5 mm

What is the best driver setup (current, microstepping, and end-of-travel switching) to maximize precision and repeatability on this 100 mm travel XY/XYZ stage driven by a 1605 ball screw and a NEMA23 motor in a DIY CNC router?

• Use a driver capable of at least 3 A per coil with proper cooling and heat sinking.
• Choose microstepping of 1/16 or 1/32 for smoother motion and finer resolution.
• Calculate steps per millimeter: with a 200-step motor and 1/16 microstepping, steps per mm = 200 × 16 / 5 = 640 steps/mm.
• Integrate end-stop switches at both ends and establish a reference home position for repeatable zeroing and calibration.
