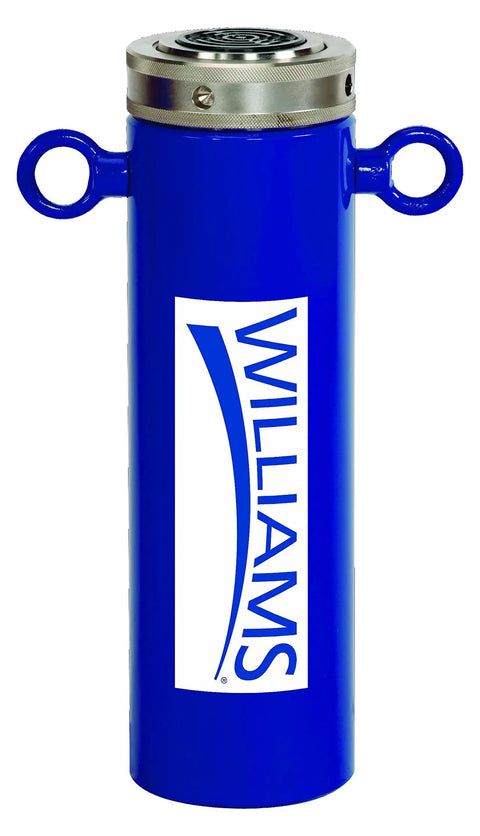

100 Ton Lock Nut Hydraulic Cylinder With 10 Inch Stroke Model 6CN100T10 Beefy Heavy-Duty Load Support In Solid Steel Body Red Or Blue Finish With Overflow Port For Overtravel Prevention Durable Construction For Long Run Lifting And Press Jobs
✔️ Solid steel body, 100 ton capacity, 10in stroke, 10k psi
This 100 ton lock nut hydraulic cylinder is a single-acting unit with a mechanical safety lock nut, designed to lift and hold heavy loads. It features a solid steel cylinder body and an overflow port to prevent overtravel.
✅ Finish: Blue or Red
✅ Capacity: 100 ton (90,718 kg)
✅ Stroke: 10 in (254 mm)
✅ Type: Single-acting with mechanical safety lock nut
✅ Overflow port: prevents overtravel for safety
✅ Load return feature
✅ Body: Solid steel cylinder
✅ Max working pressure: 10,000 psi (689 bar)
✅ Cylinder bore: 5.1 in (129.5 mm)
✅ Outside diameter: 6.5 in (165.1 mm)
✅ Plunger thread: Tw130 4N
✅ Saddle diameter: 2.8 in (71.1 mm)
✅ Depth of plunger hole: 0.08 in (2.0 mm)
✅ Saddle protrusion: 0.51 in (13.0 mm)
✅ Lock nut length: 1.8 in (45.7 mm)
✅ Base to inlet port: 1.1 in (28.0 mm)
✅ Effective area: 20.57 in^2 (13300 mm^2)
✅ Oil capacity: 202.46 in^3 (3,317 cm^3)
💡 What is a lock nut hydraulic cylinder used for in industrial lifting and pressing applications?
This handy device is used to lift and hold heavy loads in industrial settings. - heavy-load lifting in presses and setups - overflow port prevents overtravel for safety - solid steel body durability for tough environments - quick, secure load locking with a lock nut
