100 Ton Hollow Hole Hydraulic Cylinder With 3 Inch Stroke Beefy Workhorse For Pulling And Pushing High Flow Coupler With Dust Cap Dual Wipers Protective Collar Blue Or Red Spring Ideal For Industrial Lifting And Clamping
✔️ 100 ton hollow-hole cylinder, 3 in stroke, single unit, high flow

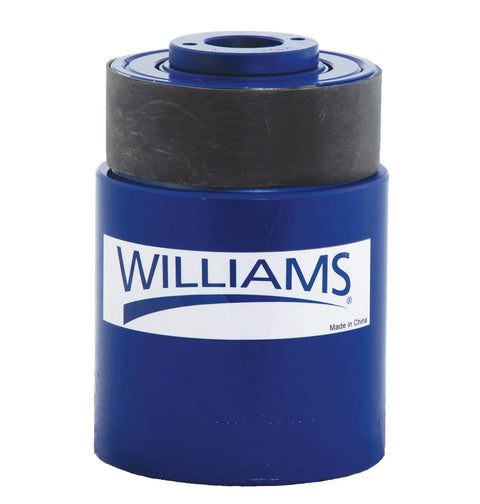

This 100 ton hollow-hole hydraulic cylinder is designed for heavy lifting, pulling, and pushing tasks in industrial settings such as manufacturing floors and maintenance shops. It features a high-flow coupler with a dust cap, a heavy-duty compression spring, dual wipers to prevent contamination, and a collar thread protector for reliability.
✅ Capacity: 100 ton
✅ Stroke: 3 inch
✅ Outside diameter: 8.386 inch
✅ Plunger ID: 3.110 inch
✅ Plunger OD: 4.92 inch
✅ Internal thread: 4 inch 16UN
✅ Internal thread length: 0.98 inch
✅ Collar thread: diameter 6 3/8 inch to 12 inch
✅ Collar thread length: 2.38 inch
✅ Base to inlet port: 1.06 inch
✅ Base mounting bolt circle: 7.01 inch
✅ Base thread: 5/8 inch to 11UNC
✅ Thread depth: 0.75 inch
✅ Oil capacity: 66.31 cubic inch
✅ Effective area: 22.13 square inch
✅ Pressure at capacity: 9036 psi
✅ Spring color: blue or red
✅ Dust cap and dual wipers for contamination prevention
💡 What is a hollow-hole hydraulic cylinder used for in heavy lifting and precision clamping applications? This handy device helps move heavy loads with accuracy on production lines and maintenance tasks. - Handy for pulling, pushing, and load transfer on heavy equipment - Hollow bore enables pass-through tools and hydraulic lines in tight setups - 3 inch stroke provides precise travel and quick adjustments - Dual wipers and dust cap protect internals for longer life
