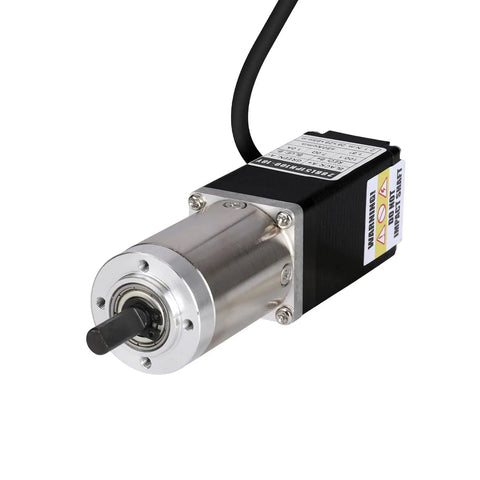

100 To 1 Beefy Geared Nema 11 Stepper Motor With Integrated Planetary Gearbox For CNC And 3D Printer DIY Projects Two Phase 1.8 Degree Step High Torque 11 Ncm Bipolar 7 Ohm 1.0 Amp 94mm Body 4 Lead Shaft 18mm Cable 1M

High-Torque NEMA 11 Geared Stepper for CNC & 3D Printers
✔️ 11 Ncm torque, 1.0 A rated current, 28x28x94 mm body, 1 m cable

Compact, high-torque stepper motor with integrated planetary gearbox, designed for tight spaces in CNC machines, 3D printers, and small automation projects. This 100:1 gear reduction delivers strong low-speed torque for precise motion in a compact 28x28 mm footprint. Single unit package ready for mounting in DIY builds.

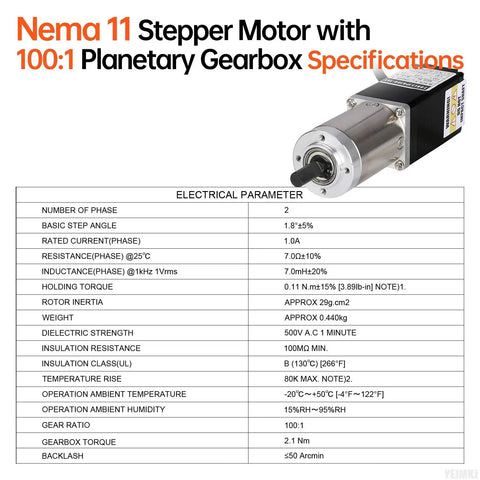

✅ Gear ratio: 100:1 planetary gearbox integrated with NEMA 11 motor
✅ Step angle: 1.8° per step (200 steps/rev)
✅ Holding torque: 11 Ncm; current 1.0 A
✅ Electrical: Resistance 7.0 Ω; Inductance 7.0 mH ±20%

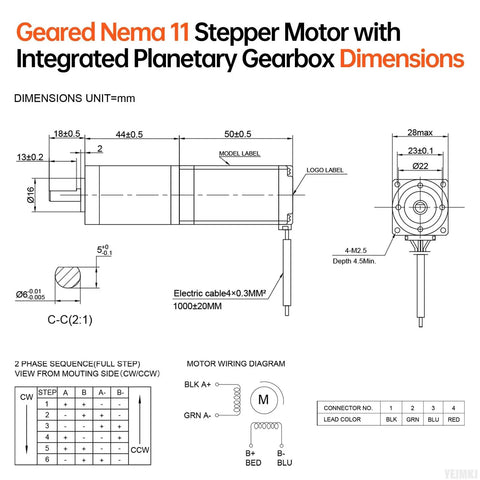

✅ Mechanical: Body 28x28x94 mm; Shaft Ø6 mm; Shaft length 18 mm; Weight 349 g
✅ Cable: 1 m; lead colors A+ Black, A- Green, B+ Red, B- Blue

💡 What is a NEMA 11 geared stepper motor with an integrated planetary gearbox used for in small automation projects? This handy device makes precise, compact motion easy. - handy for tight CNC, 3D printers, and small automation - boosts torque with a compact planetary gearbox for smooth motion - enables precise positioning with 1.8° steps and 100:1 ratio - fits 28x28 mm mounting spaces in tight toolheads
