10 Inch Stroke Mini Linear Rail Stage Actuator For DIY CNC Router X Y Z Travel 250mm With NEMA11 Stepper Motor Compatible Drive And Square Slide Table High Precision 24VDC

10-Inch Stroke Mini Linear Rail Actuator for DIY CNC

✔️ 250 mm travel, 24V DC, 0.5 A, 10 mm/s, NEMA11 ready

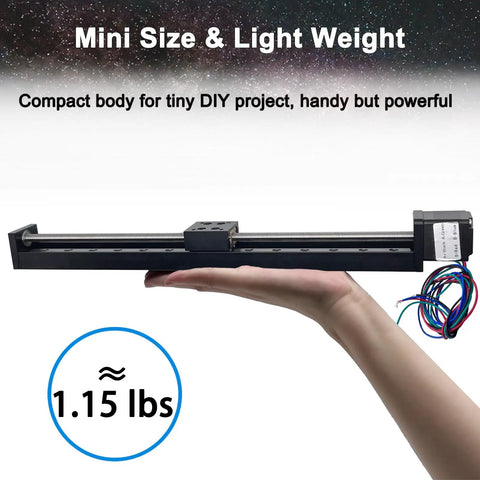

Compact, high-precision linear stage designed for small DIY CNC routers, precision fixtures, and lab setups. Includes 1 Linear Stage Actuator and a user manual for quick setup.

✅ Screw spec: T6*1-250mm (6 mm dia, 1 mm lead); travel 250 mm (9.84 in)
✅ Current: 0.5 A; Voltage: 24 V DC; Holding torque: 6 N cm
✅ Speed: 0-10 mm/s; Step angle: 1.8 degree; Total length: 326 mm (12.83 in)
✅ Load: Horizontal max 2.5 kg; Vertical max 1 kg
✅ Package: 1 Linear Stage Actuator + 1 User Manual

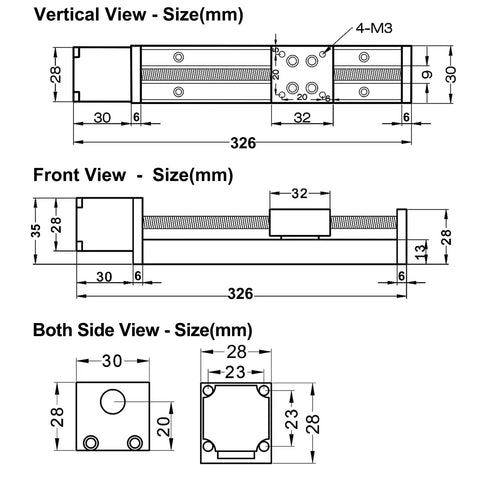

✅ Travel length: 250 mm (9.84 in); Total length: 326 mm (12.83 in)

💡 What is a compact linear stage used for in DIY CNC and precision setups?

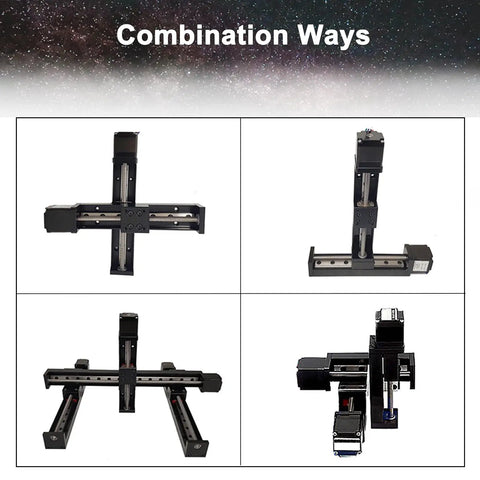

- Handy for precise, repeatable motion in CNC routers, optics benches, and metrology fixtures
- Provides controlled axial travel with a compact footprint and lightweight load handling
- Works with 24V drivers and NEMA11 motors for easy hobbyist integration
- Ideal for small automation tasks, alignment, and production tinkering
