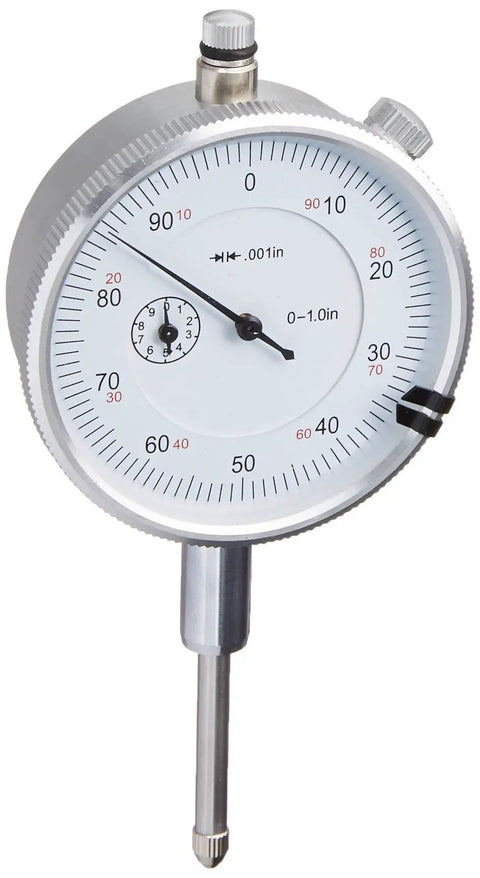

1 Inch Dial Indicator With 0.001 Inch Graduation Lug Back White Face, 2 Inch Dial, Three Eighths Inch Stem, Jeweled Movement, Stainless Rack And Contact Point, Travel 0 To 1 Inch, ASME ANSI Metrology Gauge For Machinists
✔️ 0-1 in travel, 2 in dial, 3/8 in stem, jeweled movement
This precision dial indicator measures tiny displacements with a 0.001 inch graduation, featuring a lug-back mounting and a 2 inch dial. Built to ASME/ANSI standards for machinists, it’s ideal for alignment, setup, and inspection tasks on mills, lathes, and inspection benches.
✅ Measuring range: 0 to 1 inch
✅ Reading: 0 to 100 divisions, 0.001 inch graduation
✅ Dial diameter: 2 inches
✅ Stem diameter: 3/8 inch
✅ Jeweled movement with hardened stainless rack and contact point
✅ ASME/ANSI compliant
💡 What is a dial indicator used for in machining and setup?
Essentially, this handy tool helps verify precise positions and repeatable measurements during production and fixture setup.
- Runout and alignment checks on rotating parts
- Quick, repeatable readings to confirm part positioning
- Setup validation for fixtures, vises, and gages
