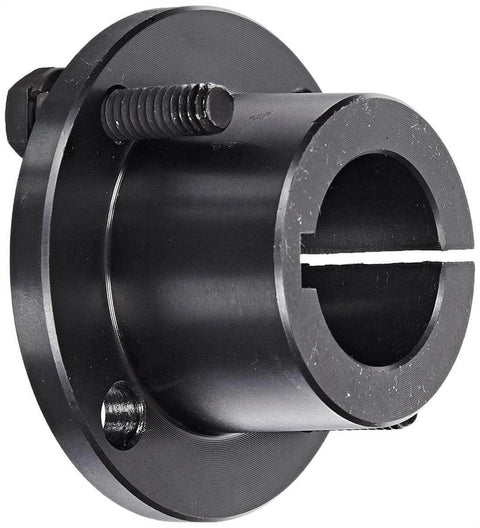

1-7/16 Inch Bore H Style Split Taper Bushing For Steel Mount Sheaves With Keyway 1/4 X 1/8, Flange Outside Diameter 2-1/2 Inch, Flange Thickness 1/4 Inch, Through Bore Length 1-1/4 Inch, Bolt Diameter 1/4 Inch

1-7/16 bore H-style split taper bushing for mount sheaves
✔️ Bore 1-7/16 in; Flange OD 2-1/2 in; Keyway 1/4 x 1/8 in; Bolt 1/4 in

These split taper bushings lock onto shafts to mount pulleys and sprockets in power transmission systems. They provide adjustable fit and strong torque transfer for conveyors, machines, and heavy equipment.

✅ Bore: 1-7/16 in (36.5 mm); Keyway 1/4 x 1/8 in (6.35 x 3.18 mm)
✅ Flange outside diameter: 2-1/2 in (63.5 mm)
✅ Flange thickness: 1/4 in (6.35 mm)
✅ Length through bore: 1-1/4 in (31.75 mm)
✅ Material: steel; bore type: keyway; bolt diameter: 1/4 in (6.35 mm)

💡 What is a split taper bushing used for in power transmission?

It’s a handy, reliable way to mount pulleys, sheaves, and sprockets on shafts with an adjustable, secure fit.

- Helps align and lock components on shafts

- Improves torque transfer by clamping onto the shaft

- Facilitates quick maintenance and part replacement
