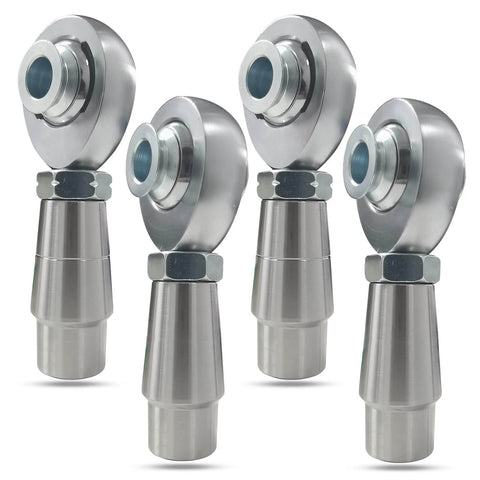

1/2 inch Heim Joint Rod End Kit, chromoly panhard rod ends with right and left hand thread, includes spacers, jam nuts and tube adapters, heat treated and hard chrome plated for steering, suspension and traction bars, 2 pair set

1/2 inch Chromoly Heim Joint Rod End Kit for Steering and Suspension
✔️ Right and Left Hand Thread 0.500 inch Panhard Rod End Set with Adapters

This 1/2 inch heim joint rod end kit is made for steering, suspension, and traction bar setups that need reliable strength with smooth movement. It’s commonly used on hot rods and custom builds where clean adjustability, solid load handling, and long service life are important.

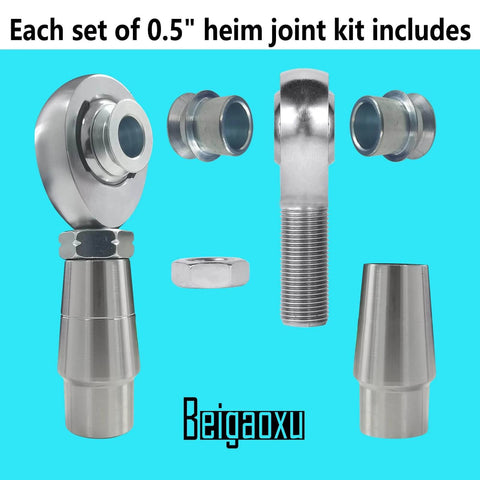

✅ Pack size: 2 complete sets including right-hand and left-hand thread heim joints, tube adapters, misalignment spacers, and jam nuts
✅ Rod end bore: 1/2 inch
✅ Thread size: 1/2 inch with 20 TPI
✅ Material: Heat-treated chromoly steel
✅ Finish: Hard chrome plated for wear and corrosion resistance
✅ Static load rating: 16000 lb
✅ Misalignment spacers: 1/2 inch to 3/8 inch reduction included
✅ Weld-ready design compatible with MIG and TIG welding

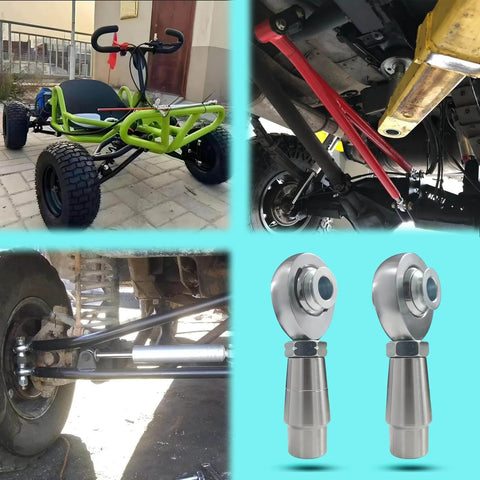

✅ Common uses: Steering links, suspension links, panhard rods, traction bars, and chassis connections

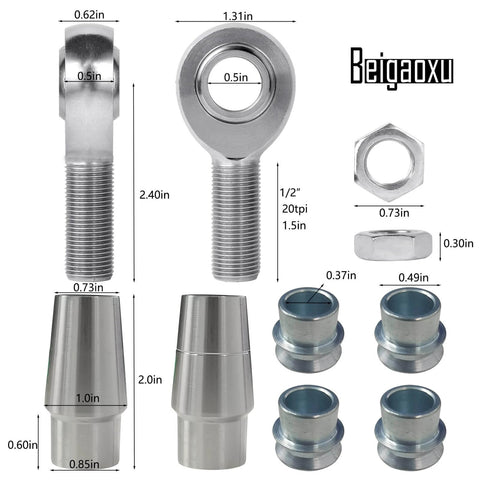

Dimensions
Bore diameter 1/2 inch
Thread size 1/2 inch 20 TPI
Tube outer diameter 1.0 inch
Tube wall thickness 0.065 inch
Tube inner diameter 0.85 inch

💡 Why are 1/2 inch chromoly heim joints commonly used in steering and suspension link systems?
They offer a strong balance of size, strength, and adjustability for mid-duty applications.

• Heat-treated chromoly handles repeated load cycles and road shock without deforming

• Fine thread pitch improves adjustment control and locking strength

• Misalignment spacers help maintain smooth movement while reducing binding

This heim joint kit is a handy option when you need dependable adjustment, solid load capacity, and smooth articulation in steering or suspension setups that see regular use.
