1/2" Bearing HCF201-8 Square Flanged Cast Housing Mounted Bearing with Eccentric Collar
$46.99
SKU: HCF201-8
UPC: 00193019019245
UPC: 00193019019245
Item: HCF201-8 Ball Bearing
Type: Flange Mounted Bearing Eccentric Collar
Bolt Size: 3/8" inch
Shaft Diameter: 1/2" inch
Basic Load (Cr): 12.8 KN
Type: Flange Mounted Bearing Eccentric Collar
Bolt Size: 3/8" inch
Shaft Diameter: 1/2" inch
Basic Load (Cr): 12.8 KN
| HCF201-8 Four Bolt Flange Unit Set Screw Type with Eccentric Collar 1/2" inch Inner Diameter |
|
HCF201-8 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1/2" inch
|

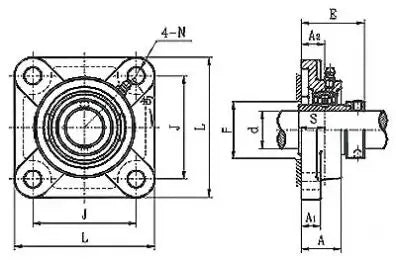

| Dimensions (inches) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | A1 | A2 | E | J | L | N | s | F min | |
| 1 3/64" | 31/64" | 21/32" | 1 5/8" | 2 3/32" | 2 15/16" | 1/2" | 21/32" | 1 7/32" | |
HCF201-8
