1 1/2" Bearing HCFL208-24 2 Bolts Flanged Housing Mounted Bearing with eccentric collar lock
Title
$67.99
SKU: HCFL208-24
UPC: 00193019200216
UPC: 00193019200216
Item: HCFL208-24 Bearing
Type: Flanged Mounted Bearing with eccentric collar lock
Bolt Size: 1/2" Inch
Basic Load Dynamic (Cr): 29,100 N
Basic Load Static (Cor): 17,800 N
Type: Flanged Mounted Bearing with eccentric collar lock
Bolt Size: 1/2" Inch
Basic Load Dynamic (Cr): 29,100 N
Basic Load Static (Cor): 17,800 N
HCFL208-24 Mounted Bearing 1 1/2" Inch Inner Diameter One Bearing |
HCFL208-24 Mounted Bearing, the inner diameter is 1 1/2" Inch.
|

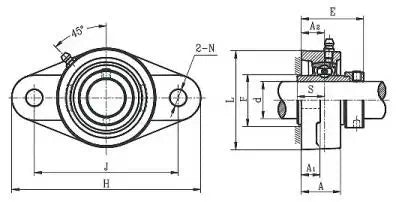

Dimensions (Inches) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
A | A1 | A2 | E | F min | H | J | L | N | S | ||
1 17/32" | 11/16" | 27/32" | 2 3/8" | 2 5/32" | 6 29/32" | 5 21/32" | 3 15/16" | 9/16" | 27/32" |
