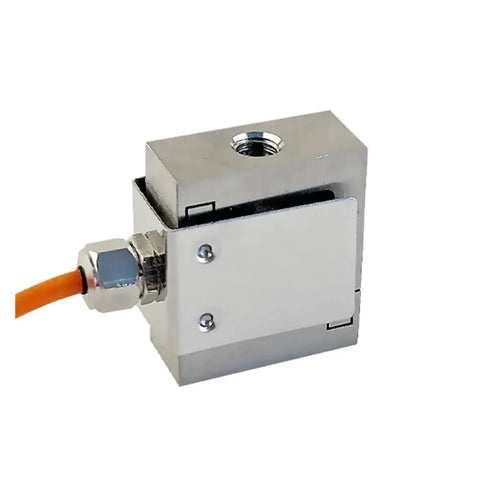

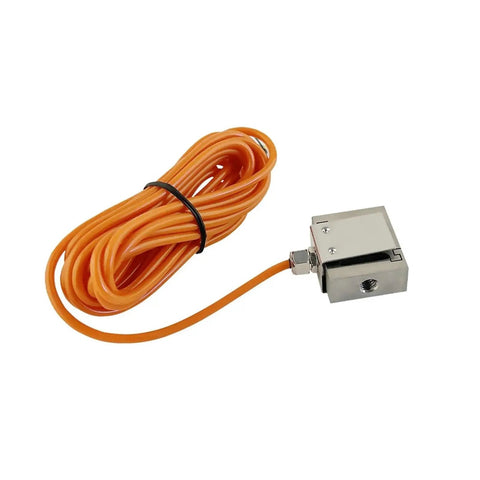

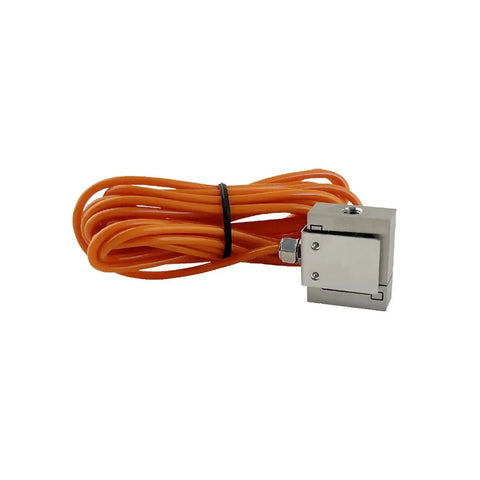

0-50 Kg Tension Load Cell With LED Display Control Meter For Weighing Systems Kit Testing Pro Grade Inductive Force Sensor With Ultra Precise 0.05 Percent FS Accuracy

High-precision 0-50 kg tension load cell with LED display
✔️ Compact single-unit, 0-50 kg inductive force sensor with 0.05% FS

This tension load cell combines a rugged inductive force sensor with an LED display control meter, delivering precise tension readings for weighing systems, calibration kits, and force testing rigs. Ideal for labs and production lines that require accurate pull force data.

✅ Rated load: 0-50 KG
✅ Output: Analog sensor with 1.0-2.0 mV/V sensitivity
✅ Zero balance: ±1% F.S.
✅ Repeatability: 0.3% F.S.
✅ Creep: 0.1% F.S.
✅ Zero temp coefficient: 0.5% F.S./10°C
✅ Sensitivity temp coefficient: 0.5% F.S./10°C
✅ Impedance: 350/500 ohms
✅ Working temp: -20 to +80°C
✅ Safe overload: 120% F.S.
✅ Insulation resistance: 5000 MΩ / 100 VDC
✅ Excitation voltage: 5-10 V
✅ Non-linearity: 0.5% F.S.

💡 What is a tension load cell used for in weighing systems?

It’s a handy sensor used to measure pulling forces in scales, test rigs, and calibration setups.

- tension load cell is used for measuring pull forces in weighing systems and test rigs - handy for calibration, force verification, and process control - pairs with LED display meters for clear readouts
