0-10kHz To 0-10V Frequency Converter Module With Optical Isolation For PLC Interface Plug And Play Analog Voltage Conversion From Pulse Signals To Clean Analog Output For Motion Control

0-10 kHz to 0-10 V Converter Module with Optical Isolation
✔️ 1x Frequency-to-Voltage Converter, 0-10V output, 0-10kHz input

Frequency to voltage converter module turns 0-10 kHz pulse signals into a stable 0-10 V analog signal. It's ideal for PLC interfaces and motion control setups, with optical isolation to reduce noise in industrial environments.

✅ Input compatibility: Supports 3.3V, 5V, and 24V pulses with jumper-selectable levels for seamless PLC and motion control integration.
✅ Optical isolation: Signal input uses optical coupling to maximize anti-interference in industrial environments.
✅ Precise output: 0-10V analog voltage with potentiometer calibration; 100 Hz per 0.1 V ratio for linear response.
✅ Fast response: 0.3-0.5 s response time and 5 mA output current for real-time control.

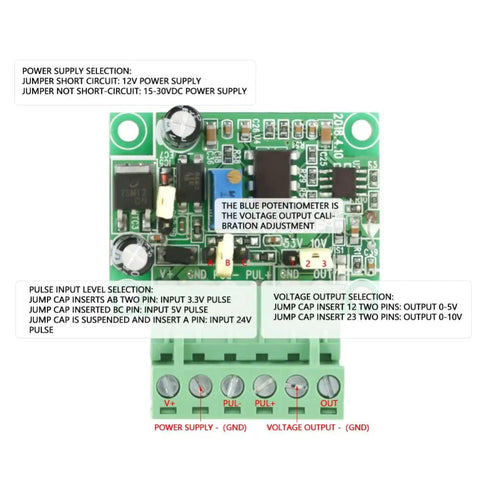

✅ Power & wiring: 12-30VDC input; two supply modes selectable via jumper; clearly labeled V+, GND, PUL+, PUL-, OUT, GND.
✅ Size & weight: 50 x 44 x 16 mm (1.97 x 1.73 x 0.63 in); weight 18 g.
✅ Pack: 1x Frequency to Voltage Converter included.

💡 What is a frequency-to-voltage converter used for in automation and control? This handy device turns pulse trains into a clean 0-10 V signal for PLCs and motion control.
- Converts 0-10kHz pulses to 0-10 V analog output
- Optical isolation reduces interference in harsh environments
- Jumper-selectable inputs for 3.3/5/24 V logic
- Calibrated for roughly 100 Hz per 0.1 V for stable linear response
