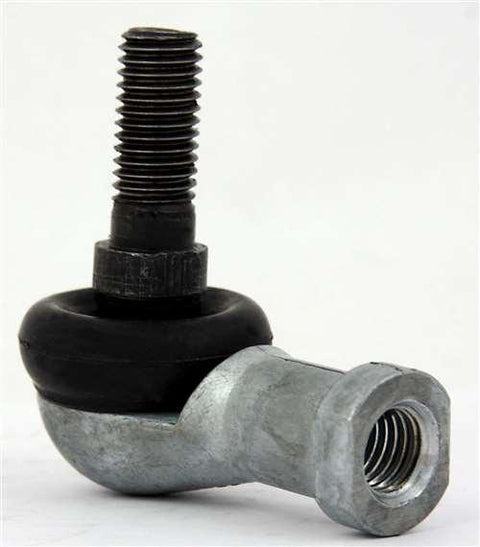

Close-up of SQ16RS-1 L-Ball Rod End with 16mm bore, showing M16x2 internal thread and metal construction.
SQ16RS-1 L-Ball Rod Ends 16mm Bore with M16x2 internal thread and static load capacity of 26 KN, side view showing threaded sections.

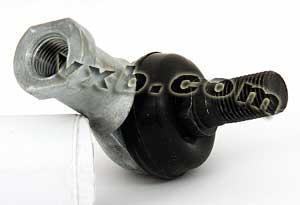

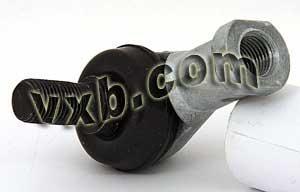

Side view of SQ16RS-1 L-Ball Rod Ends 16mm Bore with visible threaded connection and bearing surface.
Technical diagram of SQ16RS-1 L-Ball Rod Ends 16mm Bore with measurements and specifications.

SQ16RS-1 L-Ball Rod Ends 16mm Bore

70,00 $ 140,00Sie sparen 70,00 $
SKU: Kit13996
UPC: 00193019214510
Item: SQ16RS-1 Bearing
Type: L-Ball Rod Ends
Quantity: One Bearing
Static load Capacity: 26 KN

L-Ball Rod Ends SQ16RS-1
16mm Inner Diameter

L-Ball Rod Ends SQ16RS-1, inner diameter is 16mm, the internal thread size is M16x2, Cross-reference part numbers:

  • SQ16RS-1 Bearing
  • L-Ball Rod Ends
  • Quantity: Lager
  • Static load Capacity: 26 KN


Dimensions (mm)
d d1 d2 d3 Ich I2 I3 S1 L L1 L2 D1 D2 D3 S2
16 M16x2 22 44 85.5 23.5 60 19 84 64 8 22 27 39 22
