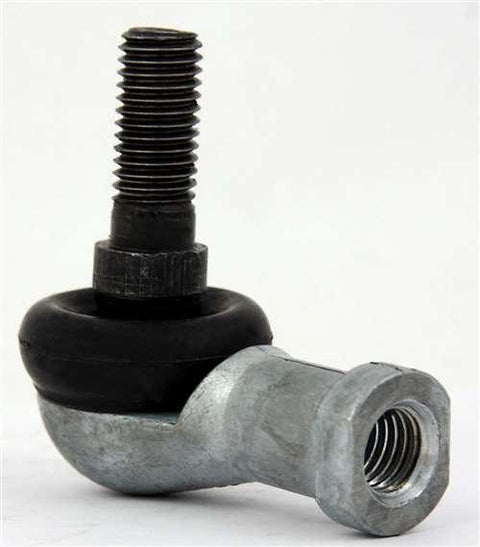

Side view of SQ12RS-1 L-Ball Rod Ends 12mm bore with threaded end, showing metal construction and black insulator.

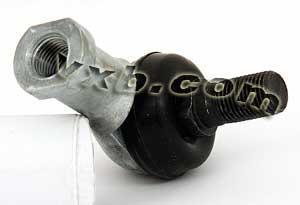

SQ12RS-1 L-Ball Rod Ends 12mm Bore showing internal thread M12x1.75 with static load capacity of 16 KN, side view
SQ12RS-1 L-Ball Rod Ends 12mm Bore with M12x1.75 thread, close-up view of metallic and black components, horizontal angle

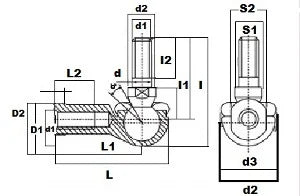

Technical drawing of SQ12RS-1 L-Ball Rod Ends 12mm Bore, showing dimensions and internal thread M12x1.75, cross-section view.

SQ12RS-1 L-Ball Rod Ends 12mm Bore

39,99 $ 61,00Sie sparen 21,01 $
SKU: Kit13992
UPC: 00193019214473
Item: SQ12RS-1 Bearing
Type: L-Ball Rod Ends
Quantity: One L-Shape Rod end
Static load Capacity: 16 KN

L-Ball Rod Ends SQ12RS-1
12mm Inner Diameter

L-Ball Rod Ends SQ12RS-1, inner diameter is 12mm, the internal thread size is M12x1.75, Cross-reference part numbers:

  • SQ12RS-1 Bearing
  • L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 16 KN


Dimensions (mm)
d d1 d2 d3 Ich I2 I3 S1 L L1 L2 D1 D2 D3 S2
12 M12x1.75 17 32 64.5 19 42 15 66 50 6.5 17.5 22 31 19
