Close-up of SQ10RS L-Ball Rod Ends 10mm Bore, showing metal body with threaded internal M10x1.25 thread, side view.

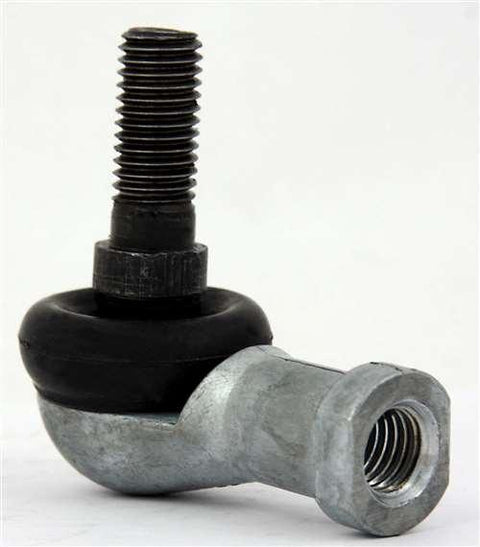

SQ10RS L-Ball Rod Ends 10mm Bore with threaded inner section visible, showcasing M10x1.25 thread size, ideal for mechanical use.

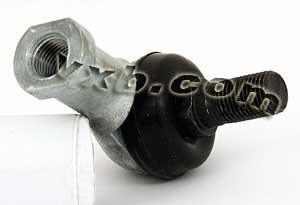

Side view of SQ10RS L-Ball Rod Ends 10mm Bore with M10x1.25 thread and metal construction.

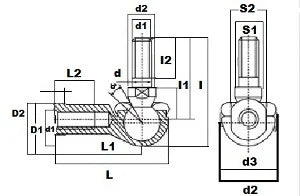

Technical diagram of SQ10RS L-Ball Rod Ends 10mm Bore showcasing dimensions and threading details.

SQ10RS L-Ball Rod Ends 10mm Bore

39,99 $ 80,00Sie sparen 40,01 $
SKU: Kit13989
UPC: 00193019214442
Item: SQ10RS Bearing
Type: L-Ball Rod Ends
Quantity: One L-Shape Rod end
Static load Capacity: 10 KN

L-Ball Rod Ends SQ10RS
10mm Inner Diameter

L-Ball Rod Ends SQ10RS, inner diameter is 10mm, the internal thread size is M10x1.25, Cross-reference part numbers:

  • SQ10RS Bearing
  • L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 10 KN


Dimensions (mm)
d d1 d2 d3 Ich I2 I3 S1 L L1 L2 D1 D2 D3 S2
10 M10x1.25 14 30 50.5 17 37 11 57 43 6.5 15 19 27 17
