50mm Einsatz GRIP-IT 360 Grad 50mm Lager
Regulärer Preis
$305.99
Verkaufspreis$468.00Sie sparen $162.01
| Dieser Artikel wird innerhalb einer Woche versandt Rücksendungen unterliegen einer Wiedereinlagerungsgebühr von 15%. |
|
GER210-50mm Bearing Insert GRIP-IT 360 Degree Locking Set Screw Locking 50mm Inner Diameter |
GER210-50mm Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing has relubrication groove with oil hole on side opposite of locking callar, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.
|

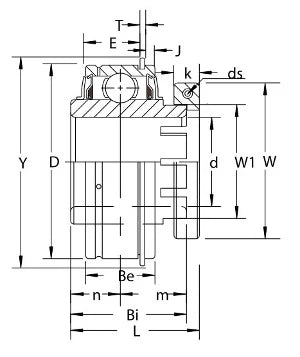

| Dimensions mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | L | n | m | E | W1 | J | T | Y | K | W | ds (UNF-GewindeThread) |
| 90 | 51.6 | 28.6 | 57.6 | 19 | 32.6 | 22.6 | 62.1 | 3.28 | 2.7 | 96.5 | 14.5 | 86 | 1/4-20x1 |
