F0824 Flanschlager – Vollrollenkranz – 1/4" x " x " inch

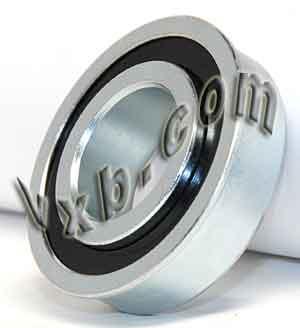

F0824 flanged full complement ball bearing
✔️ full complement no-cage flanged bearing 1/4 x 3/4 x 5/16 in

This single F0824 flanged ball bearing uses a full complement design with no cage, giving you extra rolling elements for higher load capacity in compact mechanisms. It’s a handy fit for hobby builds, small machines, and custom assemblies needing tight, smooth rotation.

✅ Bore diameter: 1/4 in
✅ Outer diameter: 3/4 in
✅ Width: 5/16 in
✅ Full complement (no cage)
✅ Ball size: 1/8 in
✅ Pack size: one bearing

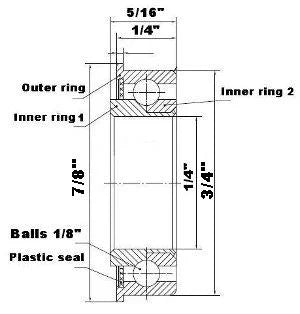

Dimensions (inches)
Bore diameter: 1/4
Outer diameter: 3/4
Inner ring width: 5/16
Outer ring width: 1/4
G: 7/8

💡 How does a full complement design improve bearing load capacity?
More rolling elements share the load, giving smoother support under pressure.

• Handles higher radial loads than caged versions

• Offers steadier rotation in compact builds

• Reduces play in low-speed or high-load applications

Grab this bearing when you want tight, smooth performance in a small footprint.
