AZ12269 Roller Thrust Bronzekäfig 12x26x9mm

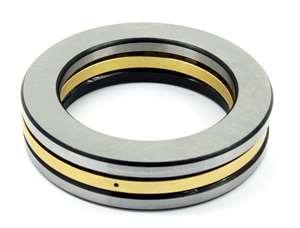

AZ12269 Cylindrical Roller Bearing - Bronze Cage
✔️ 12mm ID x 26mm OD x 9mm wide, high load capacity
The AZ12269 cylindrical roller bearing features a solid bronze cage for improved durability and load distribution. With a compact 12mm bore and robust 9mm width, it’s built for high radial loads in precision machinery, gear systems, and compact drive applications. Pack size: 1 bearing.
✅ Type: Cylindrical roller bearing
✅ Cage material: Bronze
✅ Inner diameter: 12mm
✅ Outer diameter: 26mm
✅ Width: 9mm
✅ Dynamic load rating (Cr): 14,400 N
✅ Static load rating (Cor): 28,500 N
✅ Limiting speed: 13,600 RPM
✅ Quantity: 1 bearing
Dimensions (metrisch):
| d ID) | D OD) | TWidth) | d1 | D1 | r min |
|---|---|---|---|---|---|
| 12mm | 26mm | 9mm | 13mm | 26mm | 03mm |
💡 What makes cylindrical roller bearings ideal for radial load systems?
They’re designed to spread the load across more surface area.
-
High load rating with compact dimensions
-
Der Bronzekäfig ist verschleißfest und verbessert die Wärmeableitung
-
Großartig für Motoren, Pumpen und Untersetzungsgetriebe
-
Runs smooth even under constant radial pressure
If your system’s under stress, drop this AZ12269 into the build, it’s made to roll heavy and roll strong!
