Flanged Mounted Bearing With Eccentric Collar Lock For Five Eighth Inch Inner Diameter Shaft, Two Bolt Housing, Ball Bearing With Flange, Model HCFL202-10 Bearing Assembly, Bolt Size Three Eighth Inch, Basic Load Cr 12, Durable Industrial Mount

5/8 in Flanged Mounted Bearing with Eccentric Collar Lock
✔️ 5/8 in bore, 2-bolt flange, eccentric collar, 3/8 in bolt

The HCFL202-10 is a flanged mounted bearing with an eccentric collar lock, designed to support rotating shafts in compact machinery. It uses a 2-bolt flange for secure mounting in conveyors, packaging lines, and general industrial equipment.

✅ Inner bore: 5/8 in
✅ Flange: 2-bolt with eccentric collar lock
✅ Bolt size: 3/8 in
✅ Basic Load Cr: 12800 N
✅ Basic Load Cor: 6650 N
✅ Bearing number: HCFL202-10
✅ Quantity: 1 bearing

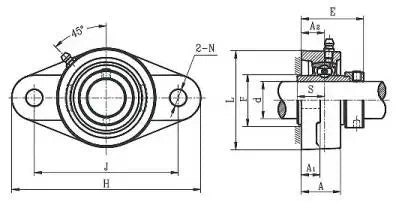

✅ Dimensions (in): D 5/8, H 4-7/16, J 5/8, g 3-17/32, N 15/32, A 1-5/32, A1 19/32, A2 3/4, E 1-25/32, L 2-13/32, S 0.4528

💡 What is a flange mounted bearing used for?

A flange mounted bearing is a handy shaft-support solution for compact equipment. - Handy for conveyors and small machines needing solid shaft support
- Easy mounting with 2-bolt flange and eccentric collar lock
- Handles radial loads with a sealed ball bearing in a flange housing
- Works well in light- to medium-duty applications requiring precise alignment
