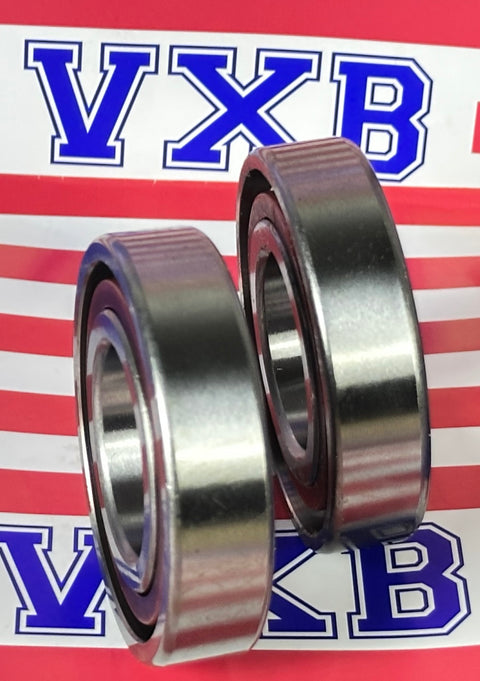

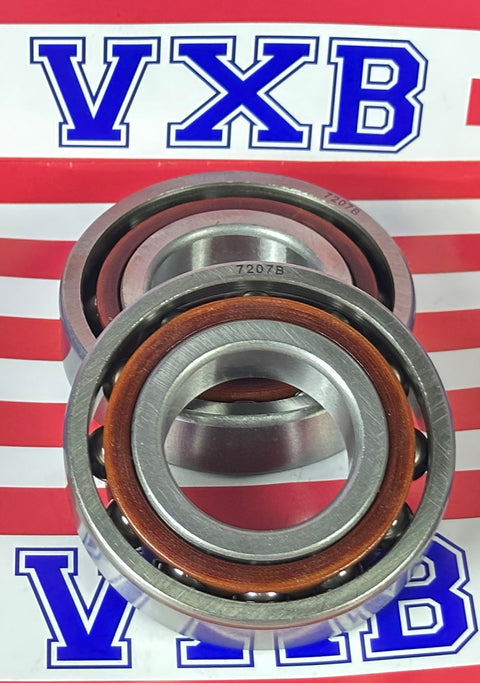

2-Pack 7207B Schrägkugellager 35x72x17mm

7207B Single Row Angular Contact Ball Bearings
35x72x17mm - Pack of 2 - Axial & Radial Load Handling

The 7207B bearings are built for high-performance machines that demand strength and precision. Designed to take combined axial and radial loads, they work best when axial forces are applied in one direction only. Made from tough chrome steel, these bearings are ready for industrial and commercial action.

Mit ihrer robusten Bauweise und ihrem zuverlässigen Design eignen sie sich perfekt für Spindeln, Getriebe und andere hochbelastete Konstruktionen.

🔧 Produktspezifikationen:

• ✅ Artikel: 7207B Kugellager

• ✅ Type: Single Row Angular Contact Ball Bearings (Spindle Style)

• ✅ Inner Diameter: 35mm

• ✅ Outer Diameter: 72mm

• ✅ Width: 17mm

• ✅ Size: 35mm x 72mm x 17mm

• ✅ Quantity: 2 Bearings

• ✅ Dynamic Load Rating (Cr): 28,000N

• ✅ Static Load Rating (Cor): 19,000N

• ✅ Fettschmierung Drehzahlgrenze: 7.500 RPM

• ✅ Ölschmierung Drehzahlgrenze: 10.000 RPM

💡 When should you use angular contact bearings?
When you need to handle both thrust and radial loads at once, like in machine spindles, pumps, or motors - angular contact bearings are the perfect choice for strength and smooth running.
