NB

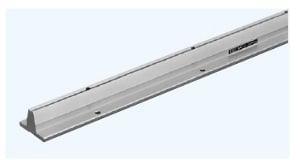

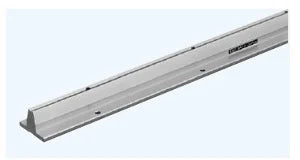

WA16-24PD NB Stainless Steel Shaft 24 inch Length Linear Motion

$136.99
SKU: WA16-24PD-NB
UPC: 00193019133811
NB NB Shaft Support Rail
Shaft Diameter: 1" inch
Length: 24" Inch
Material: Aluminum Alloy

WA16-24PD NB Shaft Support Rail:NB Linear Systems
24" Inch (609.6mm) Length
1" inch Diameter Shaft


WA16-24PD NB Shaft Support Rail, 1" Diameter x 24" inch Long Shaft.

  • NB NB Shaft Support Rail
  • Shaft Diameter: 1" inch
  • Length: 24" Inch
  • Material: Aluminum Alloy

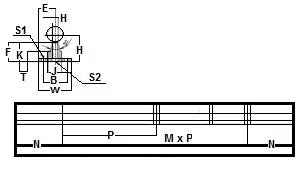

Major dimensions Mounting dimensions
H E W F T K J h1 B N MxP S1 S2
hole bolt hole bolt
1-3/4" 1-1/16" 2-1/8" 1-9/32" 1/4" 23/32" 7/8" 23/64" 1-1/2" 3 3x6 9/32" 1/4" 9/32" 1/4"
