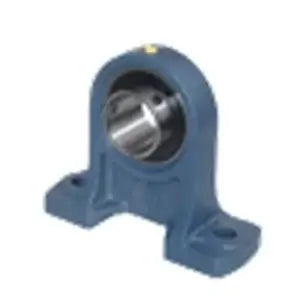

UCPH207 Bearing 35mm Pillow Block Mounted Bearings
$30.99
Item: UCPH207 Bearing
Type: high centerheight pillow unit
Bolt Size: M14
Basic Load (Cr): 25.7 KN
Basic Load (Cor): 15.4 KN
Type: high centerheight pillow unit
Bolt Size: M14
Basic Load (Cr): 25.7 KN
Basic Load (Cor): 15.4 KN
| UCPH207 Bearing Pillow Block Bearing Cylindrical bore (with set screws) 35mm Inner Diameter Bearing |
|
This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.
|

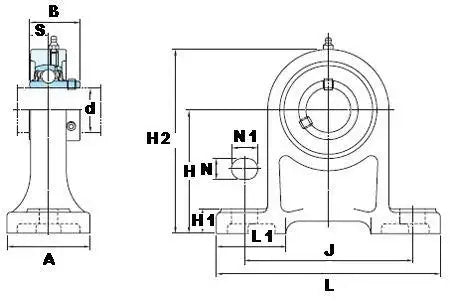

| Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
| 35 | 95 | 167 | 60 | 127 | 17 | 21 | 18 | 140 | 54 | 42.9 | 17.5 |
