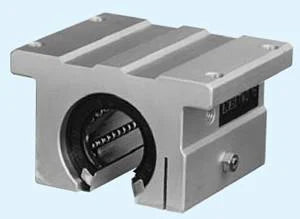

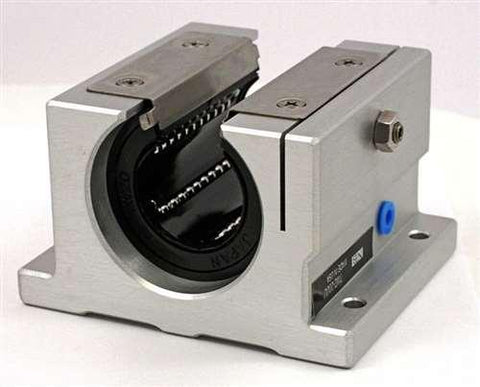

SWD16 NB Ball Bushing 1 inch Open Block Linear Motion
$110.34
SKU: SWD16-NB
UPC: 00193019132876
UPC: 00193019132876
Item: SWD16 Bearing
Type: Linear Ball Bushing
Shaft diameter: 1" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 980 N
Type: Linear Ball Bushing
Shaft diameter: 1" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 980 N
| SWD16 Slide Unit Block Type Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
1" Slide Unit Block Type (Inch Series), the inner diameter is 1" inch, bearing has steel retainer, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Major dimensions | Mounting dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 1-3/16" | 1-5/8" | 3-1/4" | 2-5/8" | 1-31/32" | 3/8" | 1-3/16" | 1-31/64" | 9/16" | 2-7/8" | 1-3/4" | 7/32" |
