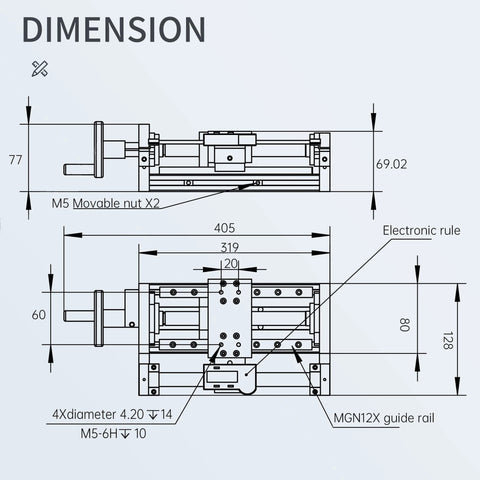

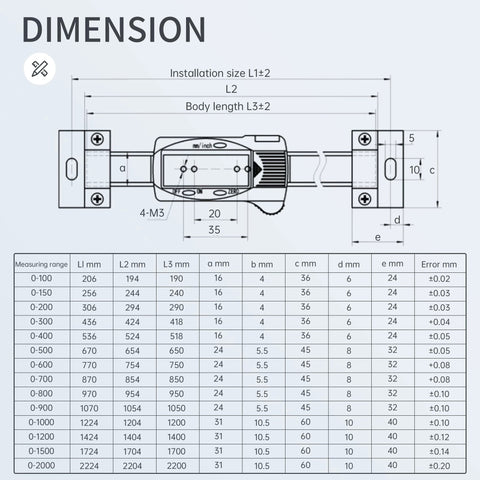

Dimensions diagram for Linear Stage Actuator MBX80 Type Munual Linear Slide Table with Red Digital Scale, 1605 Ballscrew.

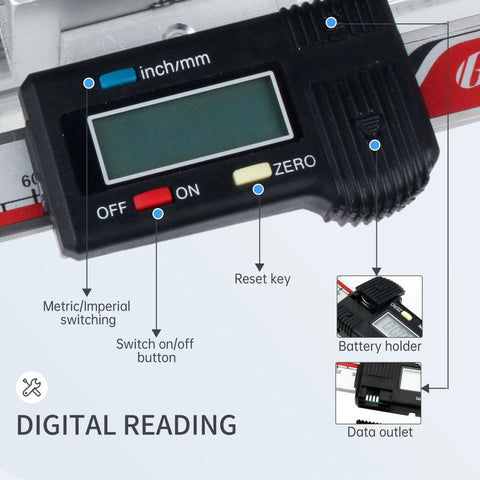

Linear Stage Actuator MBX80 Type Munual Linear Slide Table with Red Digital Scale, black digital display, 1605 Ballscrew with Locking Function

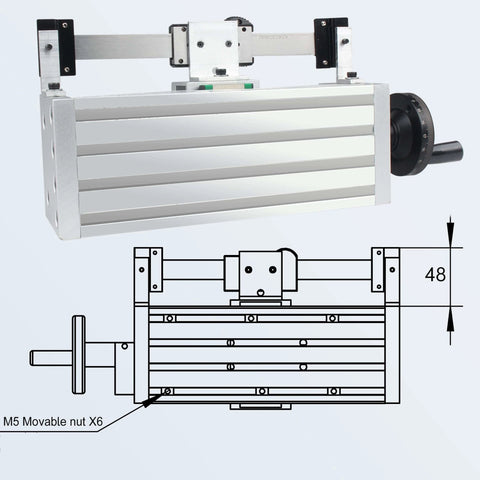

Front view of Linear Stage Actuator MBX80 Type Munual Linear Slide Table with Red Digital Scale, 1605 Ballscrew with Locking Function
Technical drawing of Linear Stage Actuator MBX80 Type Munual Linear Slide Table with dimensions and guide rail details

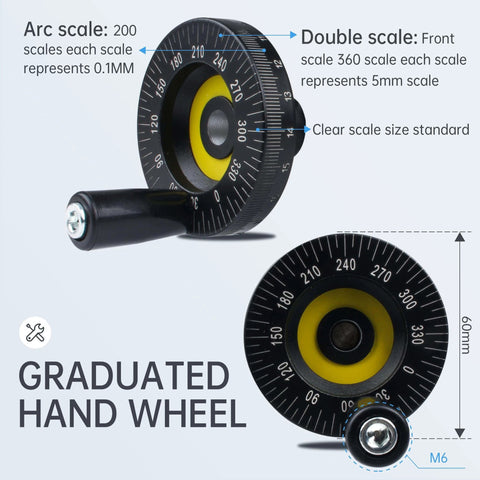

Graduated hand wheel with arc and double scale, showing measurements, used with Linear Stage Actuator MBX80 Type Munual Linear Slide Table.

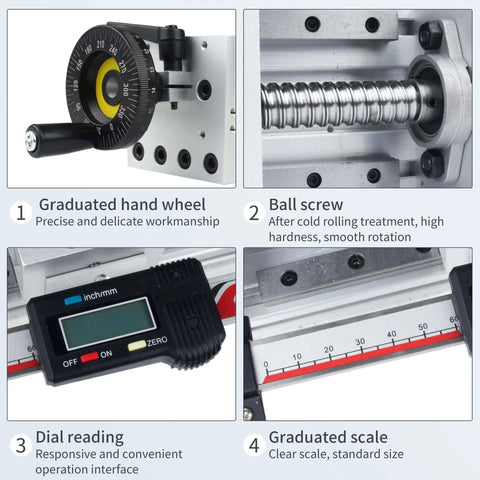

Close-up of Linear Stage Actuator MBX80 Type Manual Linear Slide Table features, including digital scale and 1605 ballscrew.

Amazon

Linear Stage Actuator MBX80 Type Munual Linear Slide Table with Red Digital Scale, 1605 Ballscrew with Locking Function, Double Linear Rail for CNC XYZ Axis (200mm)

$159.00 $232.00you save $73.00
SKU: B0DT5TS2Z7
UPC: 00193019420362





MBX80 Dual-Linear Rail Manual Slide Table with Red Digital Scale, 200 mm Stroke, 1605 Ballscrew, Locking Function, Double Linear Rail for CNC XYZ Axis - Single Unit

✔️ Precision dual-rail linear stage for CNC XYZ axes (Single Unit)

This compact linear stage is a precise positioning platform used in CNC routers, milling machines, laser cutters, and automation equipment. It’s typically mounted on a worktable to move a tool or workpiece with smooth, controlled motion along the X and Y axes.

✅ Stroke: 200 mm (7.87 in); Sliding table width: 80 mm (3.15 in); Screw model: 1605; Lead: 5 mm (0.197 in); Reciprocal precision: 0.03-0.05 mm; Material: aluminum + steel; Handwheel with locking function
✅ Load capacity: horizontal 20 kg (44.09 lb); vertical 10 kg (22.05 lb)
✅ 2 linear bearings + 2 MGN12 linear guide slides; internal slider with P4 grade fine steel balls for smooth travel and low noise
✅ Manual hand crank wheel with locking function; high-hardness aluminum alloy; rust and high-temperature resistant surface treatment
✅ Digital display scale: resolution 0.01 mm; measuring range 0-150 mm; accuracy ±0.03 mm; body material 4Cr13 stainless steel; metric/imperial switchable; on/off and zero keys

This setup is handy for precise positioning tasks in workshops and production lines, delivering reliable, repeatable motion for accurate results.

💡 What is a dual-rail linear stage used for in precision motion control?

Dual-rail linear stages provide stable, accurate movement for CNC and automation tasks by combining two rails for higher stiffness and load capacity with a high-precision ballscrew and digital scale for fine positioning.

  • High rigidity from the twin-rail design enhances load handling
  • 0.01 mm scale resolution enables repeatable positioning
  • Locking handwheel allows secure manual adjustments
  • Compatible with CNC XYZ axis configurations for precise alignment
