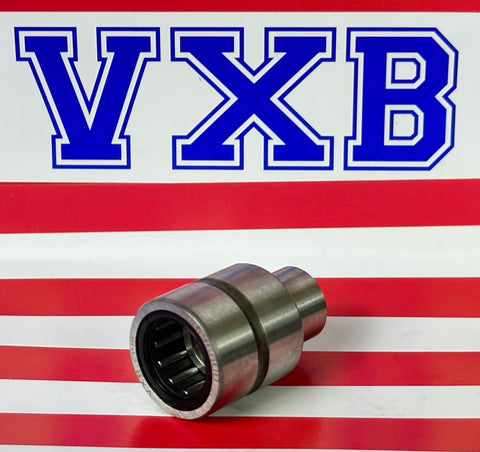

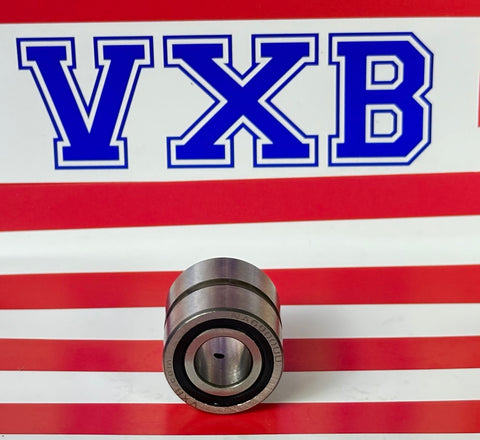

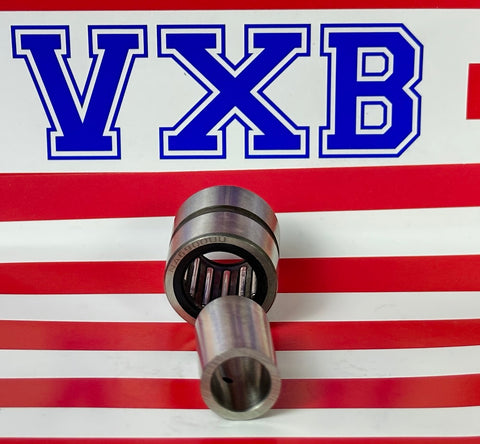

NA6900UU Needle Roller Bearing 10x22x23mm - Machined Type

Machined needle roller bearing NA6900UU , measures an inner diameter of 10mm, the outer diameter is 22mm, width of the cone (inner ring) is 23mm, and the outer ring width is 22mm.

• Item: NA6900UU Bearing
• Type: Needle Roller Bearing
• Closures: Rubber Sealed (both sides)
• Dimensions: 10mm x 22mm x 23mm /Metric
• ID (inner diameter)/Bore: 10mm
• OD (outer diameter): 22mm
• Width: 23mm
• Size: 10mm x 22mm x 23mm
• Quantity: 1 Bearing
• Basic Dynamic Load Rating: 2,545 LBF
• Basic Static Load Rating: 4,020 LBF





  Dimensions
  d	dr	D	B	B1
  10mm	14mm	22mm	22mm	23mm
