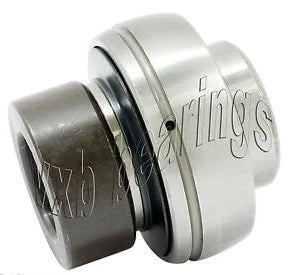

HC205 25mm Bearing Insert eccentric Collar 25mm Mounted
$26.99
SKU: Kit19083
UPC: 00193019268575
UPC: 00193019268575
Item: HC205-25mm Bearing
Type: Insert eccentric collar
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7162 N
Type: Insert eccentric collar
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7162 N
|
HC205 25mm Bearing Insert Eccentric Locking Collar 25mm Inner Diameter |
HC205 25mm Bearing Insert eccentric collar, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is re-lubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

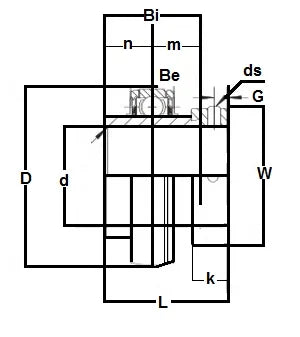

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 52 | 44.3 | 34.8 | 15 | 1.5 | 17.4 | 17.4 | 38.1 | 13.5 | 3.8 | M6xP1.0 |
