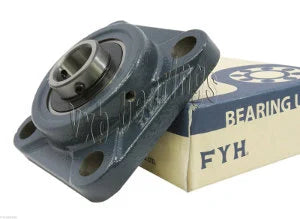

FYH Bearing UCF322 110mm Square Flanged Mounted Bearings
$1,183.91
SKU: Kit11579
UPC: 00193019078525
UPC: 00193019078525
Item: UCF322 FYH Ball Bearing
Type: Mounted FYH Ball Bearing
Bolt Size: M36
Bearing Inner Diameter: 110mm
Bearing No: UC322
Type: Mounted FYH Ball Bearing
Bolt Size: M36
Bearing Inner Diameter: 110mm
Bearing No: UC322
| UCF322 Square Flanged Mounted FYH Bearing Cylindrical bore (with set screws) 110mm Inner Diameter Bearing |
|
This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications Rotating drum, rotating roller, precise mounting accuracy is required
|

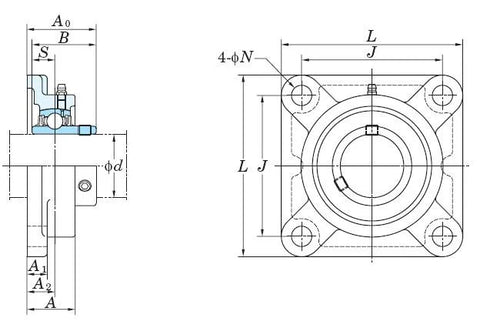

| Dimensions (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | L | A | J | N | A1 | A2 | A0 | B | S | ||||
| 110 | 340 | 96 | 266 | 41 | 35 | 60 | 131 | 117 | 46 | ||||
