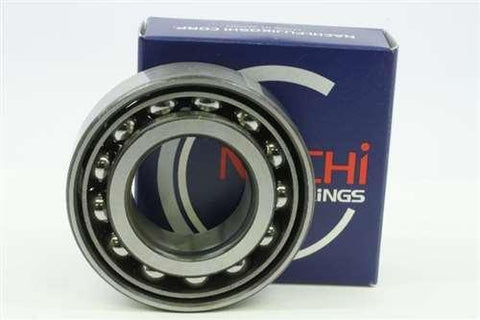

7206BMU Nachi Angular Contact Bearing 30x62x16 Brass Cage C3 Bearings
Type: Nachi Angular Ball Bearing
Cage: Brass Cage
Radial Clearance: C3
Dimensions: 30mm x 62mm x 16mm/Metric
|7206BMU Nachi Angular Ball Bearing|
40 Contact Angle
Brass Cage & Flush Ground
30mm x 62mm x 16mm
Made in Japan
7206BMU Nachi Angular Ball Bearing, bearing is 40 Contact Angle, Brass Cage and Flush Ground, Made in Japan, inner diameter is 30mm, outer diameter is 62mm and width is 16mm.
The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
