Nachi

6030ZZC3BXMM Nachi Bearing Shielded C3 Japan 150x225x35 Large Bearing

$751.99
SKU: Kit14342
UPC: 00193019098295

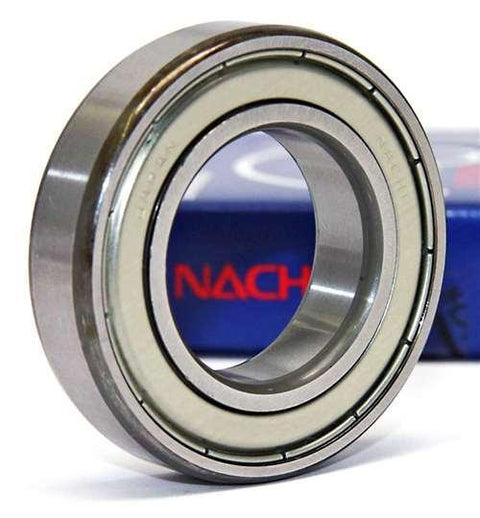

Item: 6030ZZC3BXMM Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields Z/ZZ/2Z
Radial Clearance: C3
Dimensions: 150mm x 225mm x 35mm/Metric
6030ZZC3BXMM Nachi Bearing
One Bearing
Made in Japan

6030ZZC3BXMM Nachi Bearing, the 6030ZZC3BXMM inner diameter is 150mm, the 6030ZZC3BXMM outer diameter is 225mm, 6030ZZC3BXMM width is 35mm.

  • Item: 6030ZZC3BXMM Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 150mm x 225mm x 35mm/Metric
  • ID (inner diameter)/Bore: 150mm
  • OD (outer diameter): 225mm
  • Width: 35mm
  • Size: 150 x 225 x 35 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 126000 N
  • Static load rating Cor: 126000 N
  • Limiting Speed:
    • Grease Lubrication: 2800 RPM
  • Made in Japan

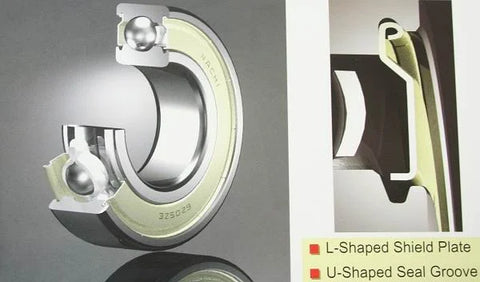

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
