VXB

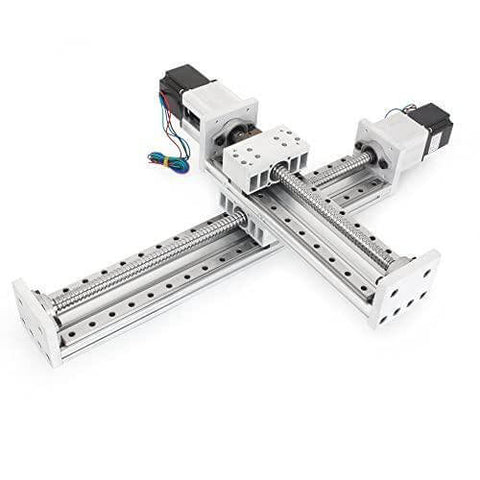

600mm Stroke CNC Linear Stage Motion Actuator X Y Z Axis Linear Slide Rail Aluminum Alloy Cross Sliding Table Linear Rail Guide SFU1605 Ballscrew+Nema23 57 Stepper Motor for CNC
Regular price
$299.99
Sale price$377.99you save $78.00
- Material: Aluminum Alloy; Effective Stroke: 600mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.
- Standard motor: 57 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.

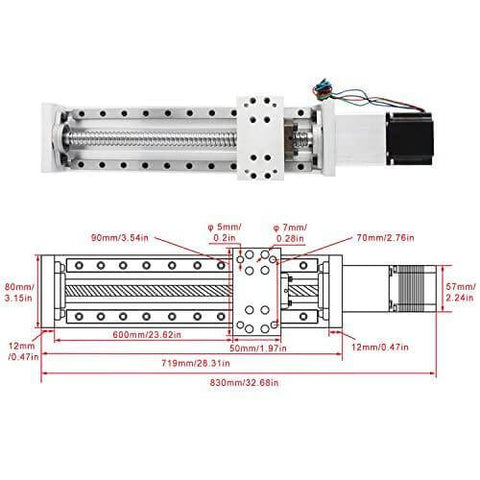

- Total length of the linear Motion Actuator including the stepper motor : 830mm; Total length of the base plate without: 719mm.
- Standard M5 mounting hole: M5 movable nuts are used on the sides and bottom to make the installation of the sliding table more flexible and changeable.

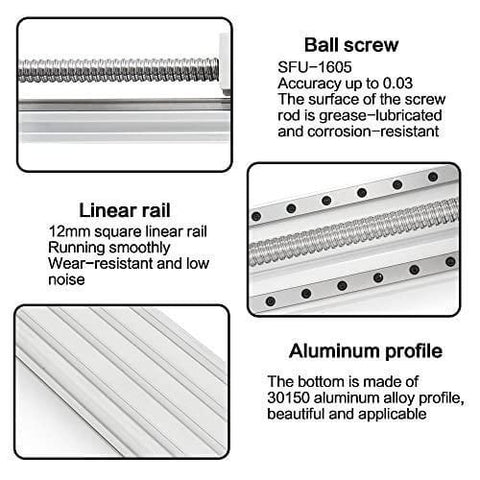

- High speed, smooth running; SFU1605 ball screw, accuracy up to 0.03.
