Nachi

5306 Nachi 2 Rows Angular Contact Bearing 30x72x30.2 Japan Bearings

No reviews
$104.99
SKU: Kit10064
UPC: 00193019085677
Item: 5306 Nachi Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Open
Dimensions: 30mm x 72mm x 30.2mm/Metric
ID (inner diameter)/Bore: 30mm

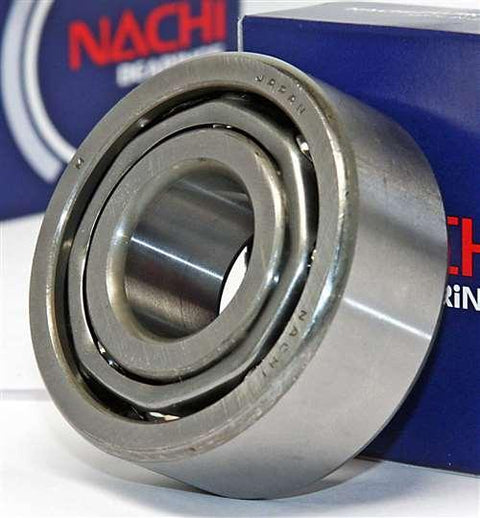

5306 Nachi Double Row Angular Ball Bearing
30mm x 72mm x 30.2mm
Made in Japan

5306 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 30mm, outer diameter is 72mm and width is 30.2mm.

  • Item: 5306 Nachi Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 30mm x 72mm x 30.2mm/Metric
  • ID (inner diameter)/Bore: 30mm
  • OD (outer diameter): 72mm
  • Width/Height/thickness:30.2mm
  • Size: 30 x 72 x 30.2 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 41,500 N
  • Static load rating Cor: 29,000 N
  • Limiting Speed:
    • Grease Lubrication: 7,000 RPM
    • Oil Lubrication: 9,500 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
