Nachi

5203 Nachi 2 Rows Angular Contact Bearing Japan 17x40x17.5 Bearings

No reviews
$35.99
SKU: Kit10045
UPC: 00193019085516
Item: 5203 Angular Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Open
Dimensions: 17mm x 40mm x 17.5mm/Metric
ID (inner diameter)/Bore: 17mm

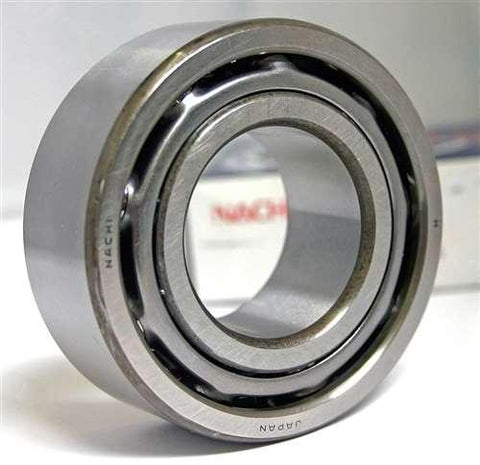

5203 Nachi Double Row Angular Ball Bearing
17mm x 40mm x 17.5mm
Made in Japan

5203 Nachi Double Row Angular Ball Bearing,Made in Japan, inner diameter is 17mm, outer diameter is 40mm and width is 17.5mm.

  • Item: 5203 Angular Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 17mm x 40mm x 17.5mm/Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter): 40mm
  • Width/Height/thickness: 17.5mm
  • Size: 17 x 40 x 17.5 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 15,000 N
  • Static load rating Cor: 9,250 N
  • Limiting Speed:
    • Grease Lubrication: 12,000 RPM
    • Oil Lubrication: 17,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
