4-Pack Female Rod End 5mm PHS5 2 Right Hand +2 Left Hand Bearing Joint

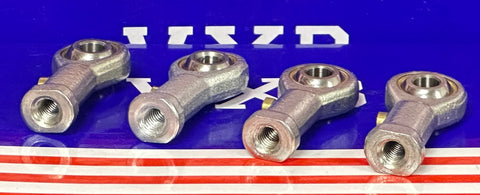

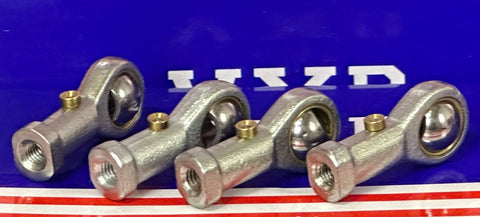

PHS-5 Female Rod Ends - Set of 4
✔️ 2 Right Hand + 2 Left Hand - Fits 5mm Shafts
This 4-pack of PHS-5 female rod end bearings includes two right-hand and two left-hand threaded pieces, making it perfect for balanced linkage setups. With a 5mm bore and M5x0.8 internal thread, these rod ends are great for precision motion control in robotics, steering systems, and mechanical linkages.
✅ Pack size: 4 rod ends (2 RH + 2 LH)
✅ Inner diameter: 5mm (0.197")
✅ Thread size: M5 x 0.8
✅ Dynamic load rating: 330 KGF
✅ Static load rating: 580 KGF
✅ Bearing type: Female rod end
✅ Equal to: IKO PHS 5, ELGES GIKFR 5 PB, SIKAC 5 M, HIRSCHMANN SF 5

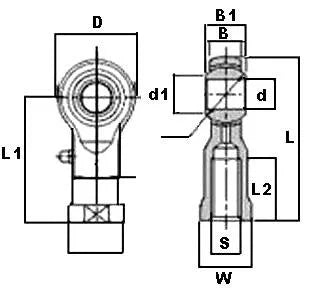

Dimensions (mm)
| Feature | Value |
|---|---|
| d (bore) | 5mm |
| Thread | M5x0.8 |
| S | 16 |
| D | 6 |
| B | 8 |
| B1 | 7.7 |
| d1 | 35 |
| L | 27 |
| L1 | 14 |
| L2 | 9 |
| W | - |
💡 Why use both right and left-hand threaded female rod ends in linkage systems?
Using a mix of right and left-hand threads allows for precise tension adjustment without disconnecting components.
Here’s why this matters:
-
Adjust length or tension by simply rotating the linkage rod
-
Useful in robotics, actuators, and RC setups
-
Prevents unwanted loosening under vibration
-
Allows smoother, tool-free calibration in field repairs
Balanced, compact, and perfect for fine adjustments - order this 4-pack and upgrade your motion control today!
