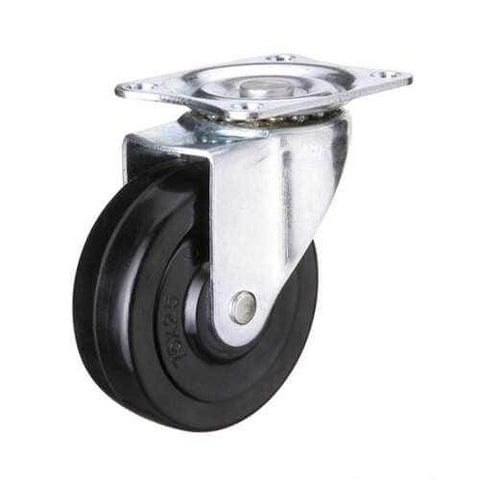

4" Inch Caster Wheel 88 pounds Swivel Polyvinyl Chloride Top Plate

No reviews
Wheel Diameter= 4" Inch" inch=100mm
Load Capacity=88 lb
Mounting Type= Top Plate
Mounting= Swivel
Tire= Polyvinyl Chloride
4" Inch Caster Wheel 88 pounds Swivel Polyvinyl Chloride Top Plate
  • Item Name= VXB007100PVC
  • Wheel Diameter= 100mm
  • Wheel Width= 27mm
  • Wheel Diameter= 4" Inch = 100mm
  • Overall Height= 130mm
  • Overall Height Inch= 5.118"
  • Mounting Type= Top Plate
  • Top Plate Size= 76mm x 76mm
  • Hole distance= 57mm x 57mm
  • Wheel Core= Polyvinyl Chloride
  • Tire= Polyvinyl Chloride
  • Bearing type= Plain bearing
  • Load Capacity= 88 lb
  • Mounting= Swivel
  • Temperature Range= -40 to 180 F

  • Mounting VXB007100PVC is the Low cost solution of making a project to move around by pushing or pulling. Diameter size of the caster wheel has a metric standard 100mm which is equal to 3.937" inch with imperial units. The thickness of the wheel is 27mm or 1.063" inch. The Caster with the wheel from end to end is 130mm = 5.118" inch. Mounted via a Top Plate that has the size of 76mm x 76mm and the holes distance of 57mm x 57mm. The Plain bearing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 88 lb with a Swivel type. Environment temperature range is -40 to 180 F. Very important notice, you need to buy the VXB007100PVC in order to get one :).
